539722 Festo Pneumatic Valves Accessories

539722 on Powermatic Associates
Festo

Part#:539722

Alt. Part#:VABF-S4-1-A2G2-N14

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

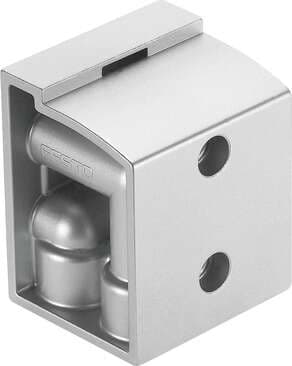

90° connection plate VABF-S4-1-A2G2-N14 For valve terminals VTSA and VTSA-F, working lines 2 and 4, at a 90° angle. Width: 26 mm, Based on the standard: ISO 15407-2, Assembly position: Any, Operating pressure: -0,9 - 10 bar, Operating medium: Compressed a

Product Details

  • Width
    26 mm
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Ambient temperature
    -5 °C ... 50 °C
  • Housing material
    Die-cast aluminum
  • Based on norm
    ISO 15407-2
  • Degree of protection
    IP65 NEMA 4
  • Product weight
    217 g
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    With through-hole
  • Type code
    VABF
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    0 - No corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
