539711 Festo Electrical Connectors

539711 on Powermatic Associates
Festo

Part#:539711

Alt. Part#:MSSD-E-M12

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

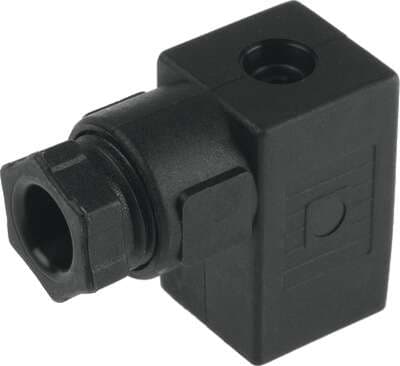

plug socket MSSD-E-M12 For solenoid coils and valves, port pattern for JMEH, MEH and MOEH valves. Connection frequency: 50, Mounting type: On solenoid valve with M3 central screw, Assembly position: Any, Product weight: 11 g, Electrical connection 1: Angl

Product Details

  • Type code
    MSSD-E
  • Current rating at 40°C
    6 A
  • Ambient temperature
    -20 °C ... 115 °C
  • Mounting position
    Any
  • Type of mounting
    On air solenoid valve with M3 central screw
  • Operating voltage range AC
    0 V ... 250 V
  • Degree of protection
    IP65 as per IEC 60529
  • Housing material
    PA-reinforced
  • Contact durability
    50
  • Electrical connection 2
    Screw terminal
  • Connection cross section
    0.75 mm²
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Cable fitting
    M12
  • Product weight
    11 g
  • Approved cable diameter
    4 mm ... 6 mm
  • Note on materials
    RoHS-compliant
  • Housing colour
    Black
  • Electrical connection 1
    Angled socket, rectangular design, 3-pin, form C
  • DC operating voltage range
    0 V ... 300 V
  • Contamination level
    3
  • Seals material
    HNBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
