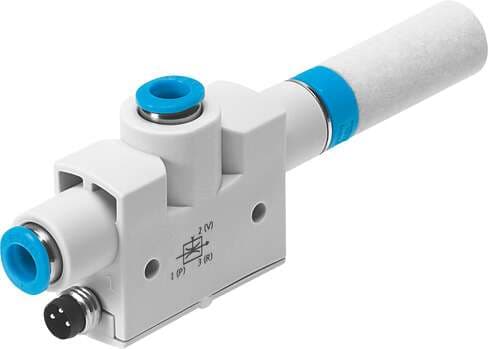

536806 Festo Vacuum Generators

Product Details

• Nominal width of Laval nozzle
  0.95 mm
• Design
  T-shape
• Method of measurement
  Relative
• Operating pressure for max. suction rate
  5 bar
• Switch-off time
  ≤ 4 ms
• Max. output current
  100 mA
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Cleaning advice
  Soap suds
• Certification
  RCM compliance mark
• Pressure measuring range
  -1 bar ... 0 bar
• Long-term drift
  ±0.5 % FS max.
• Pneumatic connection 1
  QS-6
• Fiber-optic cable
  PC
• Material of pneumatic fitting
  Brass Nickel-plated
• Width dimension
  16 mm
• Ejector characteristics
  High suction rate Standard
• Measured variable
  Relative pressure
• Display type
  LED
• Nominal operating pressure
  6 bar
• On time
  ≤ 4 ms
Voltage drop
≤ 1.5 V
Corrosion resistance class (CRC)
1 - Low corrosion stress
Max. tightening torque
0.6 Nm
Electrical connection
3-pin M8
Housing material
POM-reinforced
Muffler material
PE
Type code
VN
Mounting position
Any
Short-circuit protection
Pulsed
Switching function
Threshold value comparator Threshold value with fixed hysteresis
Switching status indication
LED
Max. suction rate with respect to atmosphere
41.5 l/min
DC operating voltage range
15 V ... 30 V
Switching output
PNP
Degree of protection
IP40
Product weight
36 g
Type of mounting
With through-hole
Seals material
NBR
Material of keypad
POM
Overload protection
Available
KC characters
KC EMC
Muffler construction type
Open
Integrated function
Pneumatic muffler open Vacuum switch
Measuring principle
Piezoresistive
Reverse polarity protection
for all electrical connections
Setting options
Teach-in
Operating pressure
1 bar ... 8 bar
Inductive protective circuit
Adapted to MZ, MY and ME coils
Residual ripple
10 %
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
0 °C ... 60 °C
Noise level at nominal operating pressure
66 dB(A)
Hysteresis in ± %FS
2 %FS
Temperature coefficient of switching point
0.05 %/K
Vacuum connection
QS-6
Material of plug housing
Brass Chrome-plated and nickel-plated
Switching element function
N/O contact
Symbol
00991917
Setting range threshold value
-1 bar ... 0 bar
Residual current
≤ 0.3 mA
CE marking (see declaration of conformity)
As per EU EMC directive
Ambient temperature
0 °C ... 50 °C
Accuracy in ± % FS
1.5 %FS
Pneumatic connection 3
Pneumatic muffler open
Female nozzle material
POM
Material of jet nozzle
Wrought aluminum alloy

Related documents 536806 Specs
