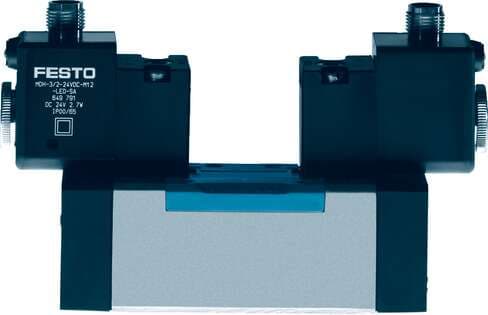

532687 Festo Pneumatic Components

Product Details

• Operating voltage
  24V DC
• Sealing principle
  Soft
• Conforms to standard
  ISO 5599-1
• Pilot air supply port
  Internal
• Changeover time
  18 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Valve function
  5/2, bistable
• Width
  42 mm
• Nominal width
  8 mm
• ISO code
  155
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level
  85 dB(A)
• Lap
  Overlap
• Standard nominal flow rate
  1200 l/min
• Pneumatic working port
  Sub-base, size 1 as per ISO 5599-1 G1/4
• Mounting position
  Any
• Type of control
  Pilot-controlled
• Max. negative test pulse on 1 signal
  4900 µs
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Electrical connection
M12x1
Pneumatic connection 1
Sub-base, size 1 as per ISO 5599-1
Operating pressure
2 bar ... 10 bar
Degree of protection
IP65
Type code
JMDH
Exhaust air function
With flow control option
Symbol
00991005
Max. positive test pulse with 0 signal
3800 µs
Permissible voltage fluctuations
+/- 10 %
Ambient temperature
-10 °C ... 50 °C
Pneumatic connection 3
Sub-base, size 1 as per ISO 5599-1
Actuation type
Electrical
Design
Piston gate valve
Width dimension
43 mm
Manual override
Non-detenting
Flow direction
Non-reversible
Coil characteristics
24 V DC: 2.7 W
Temperature of medium
-10 °C ... 50 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-1
Housing material
Die-cast aluminum
Type of mounting
On sub-base With through-hole
Product weight
550 g
Pneumatic connection 5
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-1
Seals material
HNBR NBR
