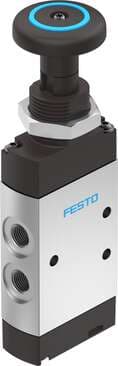

5299709 Festo Mechanical & Manual Valves

Product Details

• Width
  20 mm
• Nominal width
  5.2 mm
• Mounting position
  Any
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Cover material
  PA-reinforced
• Pneumatic working port
  G1/8
• Application note
  Operate by hand only
• Type of control
  Direct
• Temperature of medium
  -10 °C ... 60 °C
• Actuating force
  42 N
• Pneumatic connection 3
  G1/8
• Valve function
  5/2, monostable
• Actuation type
  Manual
• Reset method
  Mechanical spring
• Type code
  VHEF
• Flow direction
  Reversible
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 5
  G1/8
• Housing material
  Wrought aluminum alloy, anodized
Operating pressure
-0.95 bar ... 10 bar
Design
Piston gate valve
Exhaust air function
With flow control option
Max. switching frequency
0.5 Hz
Symbol
00992163
Pneumatic connection 1
G1/8
Pneumatic connection 4
G1/8
Lap
Overlap
Standard nominal flow rate
750 l/min
Sealing principle
Soft
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
G1/8
Seals material
NBR
Corrosion resistance class (CRC)
1 - Low corrosion stress
Product weight
182 g
Note on materials
RoHS-compliant

5299709 Related Documents
