529535 Festo Compressed Air Preparation Units

529535 on Powermatic Associates
Festo

Part#:529535

Alt. Part#:MS4-EE-1/4-V110

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

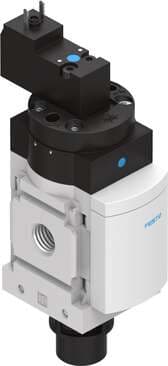

on-off valve MS4-EE-1/4-V110 Electrical, direction of flow: from left to right. Design structure: Piston slide, Type of actuation: electrical, Exhaust-air function: not throttleable, Manual override: (* detenting, * Pushing), Type of reset: mechanical spr

Product Details

  • Exhaust air function
    Without flow control option
  • Manual override
    Detenting Non-detenting
  • C value
    9.5 l/sbar
  • Standard nominal flow rate
    2000 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Flow direction
    Non-reversible
  • Pneumatic connection 3
    G1/4
  • Seals material
    NBR
  • Operating pressure
    4 bar ... 14 bar
  • Coil characteristics
    110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
  • Degree of protection
    IP65
  • Pneumatic connection 1
    G1/4
  • Housing material
    Die-cast aluminum
  • Actuation type
    Electrical
  • Type of control
    Pilot-controlled
  • b-value
    0.44
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • For use in the food industry
    See supplementary material information
  • Type code
    MS4-EE
  • Reset method
    Mechanical spring
  • Symbol
    00991008
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Mounting position
    Any
  • Pneumatic connection 2
    G¼
  • Design
    Piston gate valve
  • Valve function
    3/2, closed, monostable
  • Duty cycle
    100%
  • Type of mounting
    Optionally: With accessories
  • Product weight
    273 g
  • Pilot air supply port
    Internal
  • Electrical connection
    Form C Rectangular design

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
