529558 Festo Compressed Air Preparation Units

529558 on Powermatic Associates
Festo

Part#:529558

Alt. Part#:MS4-FRM-1/4-Z

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

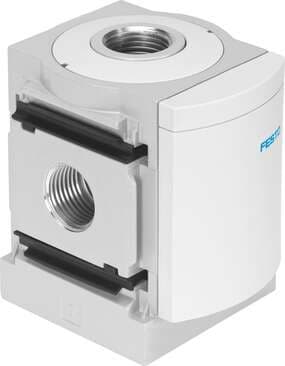

branching module MS4-FRM-1/4-Z Direction of flow: from right to left. Assembly position: Any, Design structure: Branching module, Operating pressure: 0 - 14 bar, Standard nominal flow rate in main flow direction 1->2: 4600 l/min, Standard nominal flow rat

Product Details

  • Design
    Branching module
  • Type code
    MS4-FRM
  • Operating pressure
    0 bar ... 14 bar
  • For use in the food industry
    See supplementary material information
  • Pneumatic connection 4
    G1/4
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/4
  • Mounting position
    Any
  • Standard nominal flow rate outlet at top
    1500 l/min
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 3
    G1/4
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Symbol
    00991510
  • Standard nominal flow rate outlet down
    1500 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Product weight
    165 g
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Housing material
    Die-cast aluminum
  • Standard nominal flow rate in main flow direction 1 -> 2
    4600 l/min
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

529558 Related Documents

529558 DataSheet.pdf
