529046 Festo Pressure Gauges

Name: 529046
Brand: Festo

Part#:529046

Alt. Part#:MA-40-16-1/8-EN-DPA

Manufacturer:Festo

Category:Pressure Gauges

Product Lifecycle:Active

Product description

pressure gauge MA-40-16-1/8-EN-DPA With display unit in bar and psi. Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation

Product Details

Type code
MA
Design
Bourdon tube pressure gauge
Type of mounting
Line installation
Pneumatic connection
R1/8
Inspection window material
PS
Information on operating and pilot media
No acetylene No oxygen
Measurement accuracy class
2.5
Materials in contact with the media
Brass
Housing material
ABS
Conforms to standard
EN 837-1
Operating medium
Inert gas Neutral liquids
Intermittent load factor
0.66
Ambient temperature
-20 °C ... 60 °C
Product weight
60 g
Display range
0 bar ... 16 bar
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Degree of protection
IP43
Note on materials
RoHS-compliant
Connection position
Centered on rear side
Symbol
00991463

Pressure gauge nominal size

Operating pressure

0 bar ... 16 bar

Temperature of medium

-20 °C ... 60 °C

Material of screwed trunnion

Brass

Housing colour

Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

529046 Related Documents

529046 DataSheet.pdf

Similar products from: Festo Pressure Gauges

356759

Festo

pressure gauge MA-50-16-1/4 Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 50, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation

10 in stock

Manufacturer warranty

529046 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 529046 with other Pressure Gauges products

Type code

Design

Type of mounting

Pneumatic connection

Inspection window materia...

Information on operating ...

Measurement accuracy clas...

Materials in contact with...

Housing material

Conforms to standard

Selected product

Backordered

529046

Festo

pressure gauge MA-40-16-1/8-EN-DPA With display unit in bar and psi. Indicating range [bar]: 0 - 16 ...

Type codeMA

DesignBourdon tube pressure gauge

Type of mountingLine installation

Pneumatic connectionR1/8

Inspection window materialPS

Information on operating and pilot mediaNo acetylene No oxygen

Measurement accuracy class2.5

Materials in contact with the mediaBrass

Housing materialABS

Conforms to standardEN 837-1

10 in stock

356759

Festo

pressure gauge MA-50-16-1/4 Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nomi...

Type codeMA

DesignBourdon tube pressure gauge

Type of mountingLine installation

Pneumatic connection-

Inspection window material-

Information on operating and pilot media-

Measurement accuracy class2.5

Materials in contact with the media-

Housing material-

Conforms to standardEN 837-1

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

RSC RKC 5722-1M

Turck

RSC RKC 5722-1M Turck - RSC RKC 5722-1M DeviceNet™ Cordset, Extension Cordset

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

RSV RKV 492BA-30M

Turck

RSV RKV 492BA-30M Turck - RSV RKV 492BA-30M FOUNDATION™ fieldbus Cordset, Extension Cordset

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

Relevant products

529023

Verified stock: 33

connecting kit HRBC-D-MIDI For pressure regulator combination LRB / LRBS Product weight: 188 g

Festo

529020

Verified stock: 0

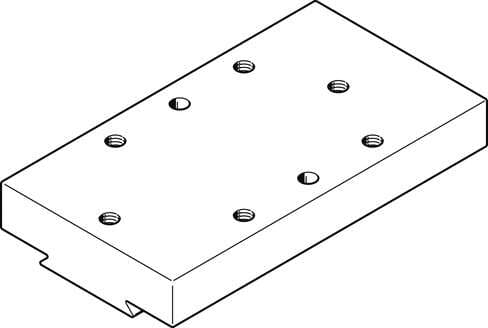

adapter kit HAPG-61 For attaching an HGPP-32 precision parallel gripper to an HMP-32 linear module. Assembly position: Any, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Materials note: Free of copper and PTFE, Material plate: Wr

Festo

529024

Verified stock: 0

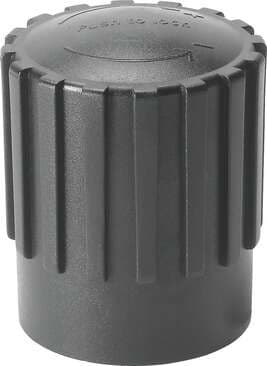

adjustment knob LR/LFR-D-MINI/MAXI-SW For series D service units

Festo

529016

Verified stock: 0

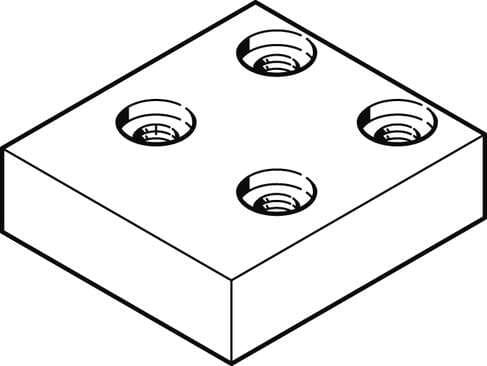

adapter kit HAPG-56 For attaching an HGPP-10 precision parallel gripper to an HMPL-12/16 linear module. Assembly position: Any, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Materials note: Free of copper and PTFE, Material plate
