356759 Festo Pressure Gauges

Name: 356759
Brand: Festo

Part#:356759

Alt. Part#:MA-50-16-1/4

Manufacturer:Festo

Category:Pressure Gauges

Product Lifecycle:Active

10 in stock

Mar 31, 2025

Product description

pressure gauge MA-50-16-1/4 Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 50, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation

Product Details

Design
Bourdon tube pressure gauge
Type of mounting
Line installation
Pneumatic connection
G1/4
Conforms to standard
EN 837-1
Operating medium
Inert gas Neutral liquids
Materials in contact with the media
Brass
Information on operating and pilot media
No acetylene No oxygen
Symbol
00991463
Operating pressure
0 bar ... 16 bar
Ambient temperature
-20 °C ... 60 °C
Material of screwed trunnion
Brass
Display range
0 bar ... 16 bar
Pressure gauge nominal size
50
Intermittent load factor
0.66
Degree of protection
IP43
Note on materials
RoHS-compliant
Housing material
ABS
Product weight
70 g
Type code
MA
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)

Measurement accuracy class

2.5

Temperature of medium

-20 °C ... 60 °C

Connection position

Centered on rear side

Housing colour

Black

Inspection window material

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

356759 Related Documents

356759 DataSheet.pdf

Manufacturer warranty

356759 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Relevant products

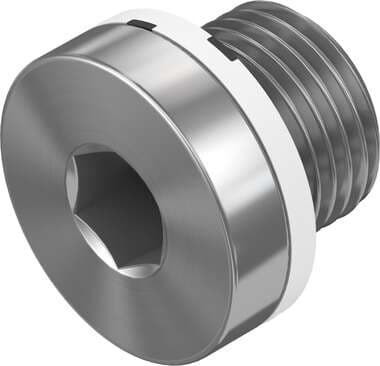

3568

Verified stock: 5

blanking plug B-1/8 As per DIN 908, with sealing ring. Container size: 10, Conforms to standard: DIN 908, Nominal tightening torque: 3,5 Nm, Tolerance for nominal tightening torque: ± 20 %, Product weight: 7 g

Festo

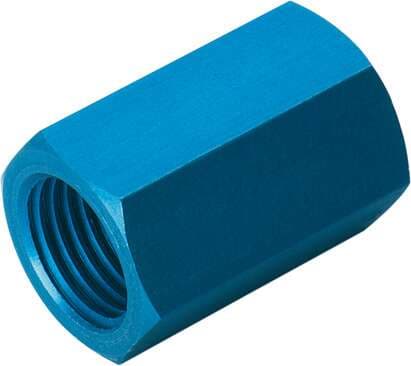

3560

Verified stock: 0

sleeve QM-M5-M5 Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Materials note: Conforms to RoHS

Festo

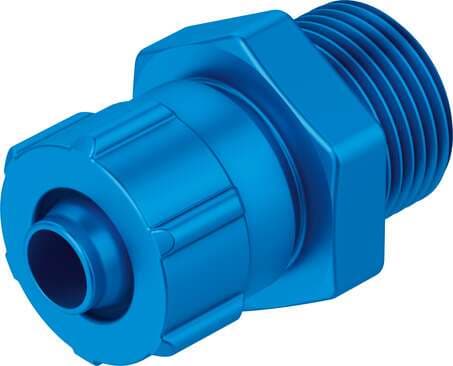

3561
