3567908 Festo Pneumatic Components

3567908 on Powermatic Associates
Festo

Part#:3567908

Alt. Part#:SRBG-C1-N-1-AS-M12-M12

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

sensor box SRBG-C1-N-1-AS-M12-M12 For electrical feedback and position monitoring of process valves actuated with pneumatic quarter turn actuators, inductive measuring principle. Design: Angular, Based on the standard: (* EN 60947-5-2, * VDI/VDE 3845), Au

Product Details

  • Protocol
    AS-Interface
  • Idle current
    ≤ 35 mA
  • Design
    Rectangular
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • KC characters
    KC EMC
  • Ambient temperature
    -25 °C ... 70 °C
  • Max. output current DC
    100 mA
  • AS-Interface, product identification
    I/O code: D ID2 code: E
  • Ready status indication
    LED green
  • Contamination level
    3
  • Measuring principle
    Inductive
  • Type code
    SRBG
  • Certification
    RCM compliance mark c UL us (OL)
  • Switching element function
    N/C contact/N/O contact switchable
  • Max. switching frequency
    100 Hz
  • AS-Interface, protocol version
    V3.0
  • Electrical connection, input
    Plug 4-pin
  • Housing material
    PBT
  • Status indicator
    LED yellow = pneumatic valve switching status LED red = wire break/short circuit at pneumatic valve
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Based on norm
    EN 60947-5-2 VDI/VDE 3845
  • Switching output
    AS-Interface
  • Product weight
    70 g
  • Switching status indication
    LED yellow
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Max. switching capacity DC
    2.5 W
  • DC operating voltage range
    26.5 V ... 31.6 V
  • Mounting position
    Any
  • Degree of protection
    IP67
  • Max. switching output voltage DC
    26.4 V
  • AS-Interface, addressing range
    1A ... 31A (0) 1B ... 31B
  • Electrical connection, output
    Socket 4-pin
  • Material of screws
    High-alloy stainless steel
  • Storage temperature
    -25 °C ... 70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3567908 Related Documents

3567908 DataSheet.pdf

Similar products from: Festo Pneumatic Components

550481 on Powermatic Associates

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock
159596 on Powermatic Associates

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

1 in stock
1589339 on Powermatic Associates

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock
195495 on Powermatic Associates

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock
184318 on Powermatic Associates

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock
8001371 on Powermatic Associates

8001371

Festo

manifold block NEFC-S1G25-C2W25-S7 Materials note: (* Contains PWIS substances, * Conforms to RoHS), Corrosion resistance classification CRC: 0 - No corrosion stress

3 in stock

Manufacturer warranty

3567908 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 3567908 with other Pneumatic Components products

Protocol

Idle current

Design

CE marking (see declarati...

Note on materials

KC characters

Ambient temperature

Max. output current DC

AS-Interface, product ide...

Ready status indication

Selected product

3567908
Backordered
3567908
Festo

sensor box SRBG-C1-N-1-AS-M12-M12 For electrical feedback and position monitoring of process valves ...

ProtocolAS-Interface

Idle current≤ 35 mA

DesignRectangular

CE marking (see declaration of conformity)As per EU EMC directive

Note on materialsContains paint-wetting impai...

KC charactersKC EMC

Ambient temperature-25 °C ... 70 °C

Max. output current DC100 mA

AS-Interface, product identificationI/O code: D ID2 code: E

Ready status indicationLED green

571484
82 in stock
571484
Festo

pressure transmitter SPTE-P10R-S4-V-2.5K Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), C...

Protocol-

Idle current-

Design-

CE marking (see declaration of conformity)As per EU EMC directive As p...

Note on materialsRoHS-compliant

KC charactersKC EMC

Ambient temperature0 °C ... 50 °C

Max. output current DC-

AS-Interface, product identification-

Ready status indication-

2247684
1 in stock
2247684
Festo

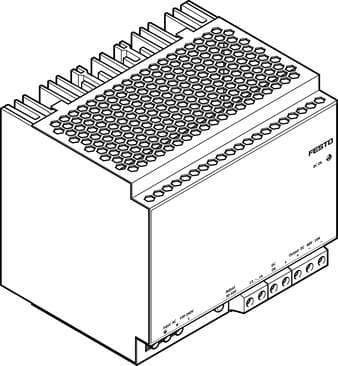

power supply unit CACN-3A-7-10 Width: 125 mm, Height: 130 mm, Length: 157 mm, Assembly position: Fre...
