529004 Festo Compressed Air Preparation Units

529004 on Powermatic Associates
Festo

Part#:529004

Alt. Part#:LRB-3/8-D-7-O-K5-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

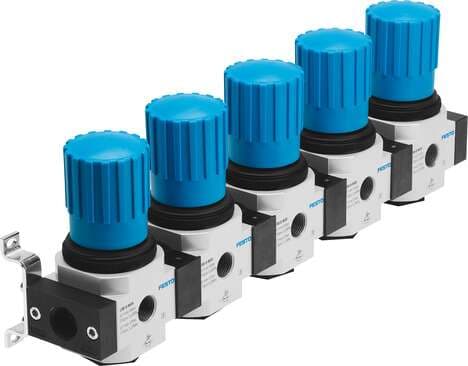

pressure regulator combination LRB-3/8-D-7-O-K5-MIDI With connecting kit, sub-base and mounting brackets, block with 2, 3, 4 or 5 pressure regulators, without pressure gauge Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: A

Product Details

  • Type code
    LRB
  • Mounting position
    Any
  • Operating pressure
    1 bar ... 16 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    With accessories
  • Housing material
    Die-cast zinc
  • Pneumatic connection 2
    G3/8
  • Pressure gauge
    G1/4 prepared
  • Standard nominal flow rate
    3800 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Product weight
    4828 g
  • Actuator lock
    Rotary knob with detent
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 1
    G3/8
  • Material of sub-base
    Die-cast zinc
  • Seals material
    NBR
  • Size
    Midi
  • Symbol
    00995334
  • Series
    D
  • Design
    Directly controlled diaphragm regulator with continuous compressed air supply
  • Max. pressure hysteresis
    0.2 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Material of operator panel
    PA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
