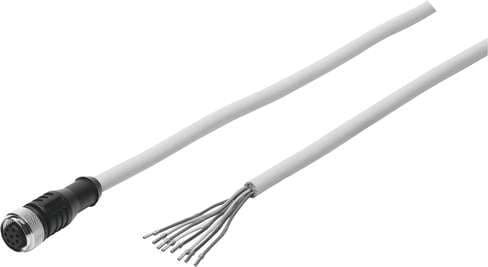

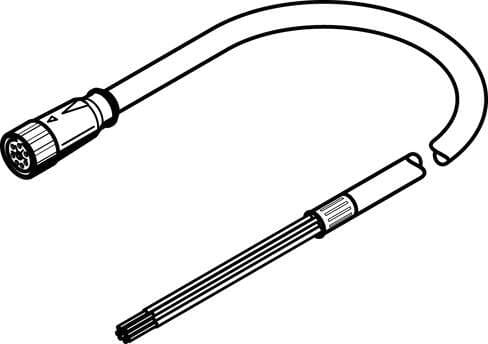

5105623 Festo Cable Assemblies

Product Details

• Electrical connection 1, function
  Field device end
• Electrical connection 1, occupied pins/wires
  8
• Electrical connection 2, connection technology
  Open end
• Ambient temperature with flexible cable installation
  -40 °C ... 90 °C
• Material of cable sheath
  TPE-U(PUR)
• Type code
  NEBM
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 2, connection type
  Cable
• Note on operating voltage range DC
  0 - 300 V for conductor cross-section of 0.5 mm²
• Current rating at 40°C
  16 A
• Cable length
  20 m
• Cable diameter
  12 mm
• Degree of protection
  IP65
• Cable designation
  Without label holder
• Electrical connection 1, connection technology
  M23x1
• Electrical connection 1, number of pins/wires
  8
• Electrical connection 2, number of pins/wires
  8
• Note on operating voltage range AC
  0 - 300 V for conductor cross-section of 0.5 mm²
• Note on surge resistance
  2.5 kV for a conductor cross-section of 0.5 mm²
• Bending radius, fixed cable installation
  ≥ 60 mm
Nominal conductor cross section
0.5 mm² 1.5 mm²
Ambient temperature
-50 °C ... 90 °C
Contamination level
3
Conforms to standard
EN 61984
Electrical connection 1, connection type
Socket
Electrical connection 2, function
Control side
Electrical connection 2, occupied pins/wires
8
Operating voltage range AC
0 V ... 630 V
Surge resistance
4 kV
Bending radius, flexible cable installation
≥ 120 mm
Wire ends
Cable end sleeve
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Color cable sheath
Orange
Electrical connection 1, design
Round
Electrical connection for input 1, connection pattern
00995660
DC operating voltage range
0 V ... 630 V
Note on acceptable current load at 40°C
8 A for conductor cross-section of 0.5 mm²
Cable characteristic
Suitable for energy chains
Cable design
4 x 1.5 mm² + 2 x (2 x 0.5 mm²) Shielded
Note on degree of protection
In mounted state
Note on materials
RoHS-compliant
