5010861 Festo Couplings

5010861 on Powermatic Associates

Festo

Part#:5010861

Manufacturer:Festo

Alt. Part#:EAMD-25-22-8-10X12

Product Lifecycle:Active

Get a quick Quote!

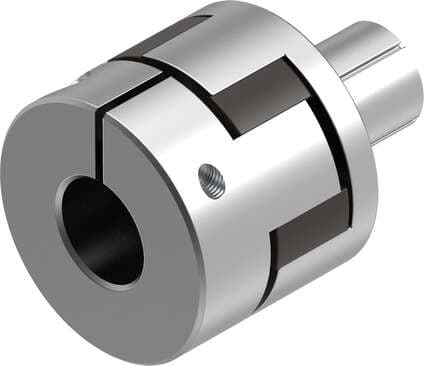

coupling EAMD-25-22-8-10X12 Holder diameter 1: 8 mm, Holder diameter 2: 10 mm, Size: 25, Nominal length: 22 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Couplings that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 5010861 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
EAMD
Ambient temperature
-25 °C ... 60 °C
Transferable torque
8 Nm
Diameter of holder 2
10 mm
Max. rotational speed
8000 1/min
Note on materials
RoHS-compliant
Size
25
Relative air humidity
0 - 95 %
Diameter of holder 1
8 mm
Mounting position
Any
Storage temperature
-25 °C ... 60 °C
Mass moment of inertia
3.2 kgmm²
Product weight
43.4 g
Nominal length
22 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 5010861 Specs

5010861 5010861 DataSheet.pdf

Manufacturer warranty
