35982 Festo Pneumatic Fittings

35982 on Powermatic Associates
Festo

Part#:35982

Alt. Part#:LCNH-M5-PK-2

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

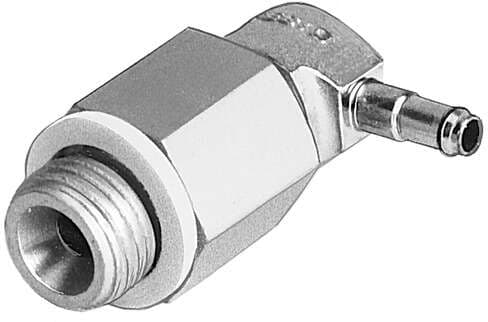

barbed L-fitting LCNH-M5-PK-2 Rotatable, with extended housing, for plastic tubing PAN, PUN, PP, PU, PR, with sealing ring. Nominal size: 1,3 mm, Type of seal on screw-in stud: Sealing ring, Operating pressure complete temperature range: -0,95 - 10 bar, O

Product Details

  • Type code
    LCNH
  • Pneumatic connection 1
    External thread M5
  • Nominal width
    1.3 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    0 °C ... 60 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Housing material
    Steel Die-cast zinc
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 3 mm
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
