35532 Festo Vacuum Generators
Part#:35532
Alt. Part#:VAD-ME-I-1/4
Manufacturer:Festo
Category:Vacuum Generators
Product Lifecycle:Active
Product description

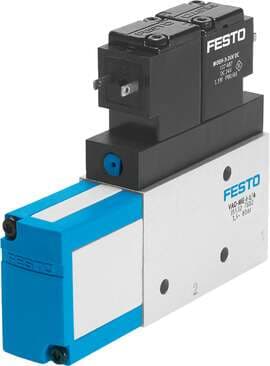

vacuum generator VAD-ME-I-1/4 With integrated solenoid valve for vacuum On/Off and ejector pulse Nominal size, Laval nozzle: 1,4 mm, Assembly position: Any, Ejector characteristic: High vacuum, Integrated function: (* Ejector pulse valve, electrical, * El
Product Details
- Symbol 00991493
- Design T-shape
- Type code VAD
- Max. vacuum 90 %
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Degree of protection IP65
- Housing material Aluminum
- Nominal width of Laval nozzle 1.4 mm
- Integrated function Ejector pulse valve, electric Shut off valve, electric
- Operating pressure 1.5 bar ... 8 bar
- Electrical connection Plug
- Ejector characteristics High vacuum
- Information on operating and pilot media Operation with oil lubrication not possible
- Pneumatic connection 1 G1/8
- Mounting position Any
- Duty cycle 100%
- Temperature of medium 0 °C ... 50 °C
- Ambient temperature 0 °C ... 50 °C
- Vacuum connection G1/4
- Type of mounting With internal thread
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
35532 Related Documents
Similar products from: Festo Vacuum Generators
Manufacturer warranty
35532 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 35532 with other Vacuum Generators products
Symbol
Design
Type code
Max. vacuum
Operating medium
Degree of protection
Housing material
Nominal width of Laval no...
Integrated function
Operating pressure
Selected product
35532
Festo
vacuum generator VAD-ME-I-1/4 With integrated solenoid valve for vacuum On/Off and ejector pulse Nom...
Symbol00991493
DesignT-shape
Type codeVAD
Max. vacuum90 %
Operating mediumCompressed air as per ISO 85...
Degree of protectionIP65
Housing materialAluminum
Nominal width of Laval nozzle1.4 mm
Integrated functionEjector pulse valve, electri...
Operating pressure1.5 bar ... 8 bar
526105
Festo
vacuum generator VN-07-H-T2-PI2-VI2-RO1 Standard, high vacuum width 10 mm, T shape with female threa...
Symbol00991489
DesignT-shape
Type codeVN
Max. vacuum88 %
Operating mediumCompressed air as per ISO 85...
Degree of protection-
Housing material-
Nominal width of Laval nozzle0.7 mm
Integrated functionPneumatic muffler open
Operating pressure1 bar ... 8 bar
193572
Festo
vacuum generator VN-07-L-T3-PQ2-VQ2-RO1 Standard, high suction rate, width 14 mm, T shape with plug ...
Symbol00991489
DesignT-shape
Type codeVN
Max. vacuum-
Operating mediumCompressed air as per ISO 85...
Degree of protection-
Housing material-
Nominal width of Laval nozzle0.7 mm
Integrated functionPneumatic muffler open
Operating pressure1 bar ... 8 bar
