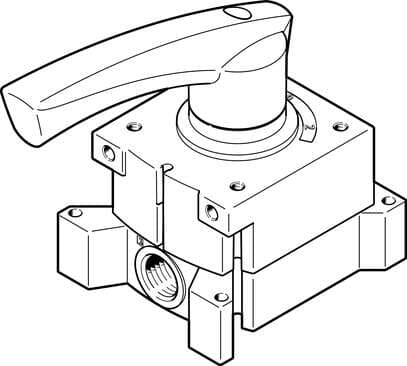

3520365 Festo Mechanical & Manual Valves

Product Details

• Actuation type
  Manual
• Standard nominal flow rate
  1150 l/min
• Nominal width
  8 mm
• Application note
  Operate by hand only
• Symbol
  00995942
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Valve function
  4/3, closed
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Exhaust air function
  With flow control option
• Switching position indication
  with accessories
• Product weight
  560 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Width
  66 mm
• Pneumatic working port
  NPT1/4-18
• Type code
  VHER
• Sealing principle
  Hard
• Underlap
  yes
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 4
  NPT1/4-18
Type of control
Direct
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Actuating torque
2 Nm
Pneumatic connection 3
NPT1/4-18
Housing material
Die-cast aluminum
Operating pressure
0 bar ... 10 bar
Design
Rotary gate valve
Flow direction
Non-reversible
Temperature of medium
-20 °C ... 80 °C
Pneumatic connection 1
NPT1/4-18
Lever material
Die-cast aluminum
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection 2
NPT1/4-18
Seals material
NBR

Related documents 3520365 Specs
