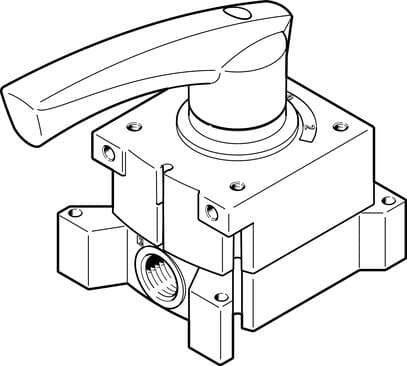

3514710 Festo Mechanical & Manual Valves

Product Details

• Width
  66 mm
• Standard nominal flow rate
  1150 l/min
• Nominal width
  8 mm
• Type of control
  Direct
• Underlap
  yes
• Ambient temperature
  -20 °C ... 80 °C
• Pneumatic connection 2
  G¼
• Pneumatic connection 4
  G1/4
• Type code
  VHER
• Flow direction
  Non-reversible
• Switching position indication
  with accessories
• Type of mounting
  Optionally: With through-hole
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Actuation type
  Manual
• Operating pressure
  0 bar ... 10 bar
• Design
  Rotary gate valve
• Sealing principle
  Hard
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 3
  G1/4
Housing material
Die-cast aluminum
Valve function
4/3, closed
Pneumatic working port
G1/4
Information on operating pressure
Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
Application note
Operate by hand only
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-20 °C ... 80 °C
Pneumatic connection 1
G1/4
Product weight
560 g
Lever material
Die-cast aluminum
Exhaust air function
With flow control option
Symbol
00995942
Actuating torque
2 Nm
Seals material
NBR
