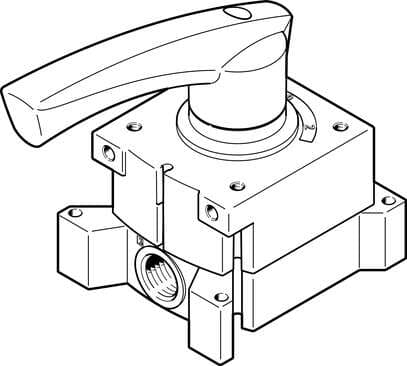

3488214 Festo Mechanical & Manual Valves

Product Details

• Standard nominal flow rate
  600 l/min
• Width
  51 mm
• Pneumatic working port
  G1/8
• Sealing principle
  Hard
• Valve function
  4/3, pressurized
• Operating pressure
  0 bar ... 10 bar
• Application note
  Operate by hand only
• Actuation type
  Manual
• Nominal width
  6 mm
• Type code
  VHER
• Underlap
  yes
• Actuating torque
  0.9 Nm
• Pneumatic connection 2
  G1/8
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Design
  Rotary gate valve
• Type of control
  Direct
• Flow direction
  Non-reversible
• Temperature of medium
  -20 °C ... 80 °C
• Pneumatic connection 1
  G1/8
• Pneumatic connection 3
  G1/8
Housing material
Die-cast aluminum
Exhaust air function
With flow control option
Symbol
00995943
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection 4
G1/8
Lever material
Die-cast aluminum
Switching position indication
with accessories
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight
260 g
Note on materials
Free of copper and PTFE RoHS-compliant
Seals material
NBR
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
Optionally: With through-hole
