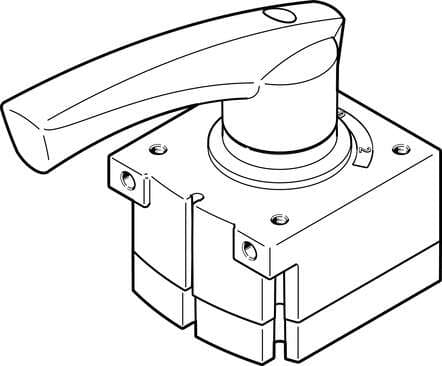

3488215 Festo Mechanical & Manual Valves

Product Details

• Design
  Rotary gate valve
• Switching position indication
  with accessories
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 3
  G1/8
• Actuation type
  Manual
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Application note
  Operate by hand only
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Actuating torque
  0.9 Nm
• Pneumatic connection 2
  G1/8
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Width
  42 mm
• Operating pressure
  0 bar ... 10 bar
• Type code
  VHER
• Sealing principle
  Hard
• Underlap
  yes
• Type of mounting
  Optionally: With through-hole
• Product weight
  220 g
• Seals material
  NBR
• Valve function
  4/3, pressurized
Pneumatic working port
G1/8
Nominal width
6 mm
Type of control
Direct
Symbol
00995943
Temperature of medium
-20 °C ... 80 °C
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection 4
G1/8
Housing material
Die-cast aluminum
Standard nominal flow rate
800 l/min
Exhaust air function
With flow control option
Flow direction
Non-reversible
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
G1/8
Lever material
Die-cast aluminum

Related documents 3488215 Specs
