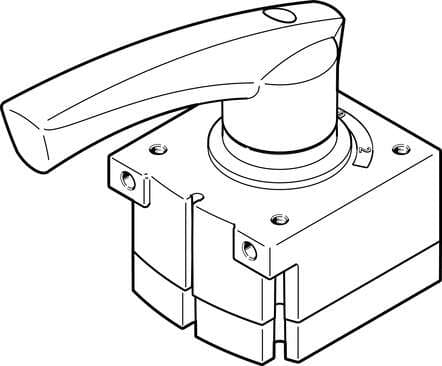

3488213 Festo Mechanical & Manual Valves

Product Details

• Standard nominal flow rate
  800 l/min
• Design
  Rotary gate valve
• Sealing principle
  Hard
• Symbol
  00995942
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Nominal width
  6 mm
• Type of control
  Direct
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -20 °C ... 80 °C
• Pneumatic connection 4
  NPT1/8-27
• Actuation type
  Manual
• Operating pressure
  0 bar ... 10 bar
• Exhaust air function
  With flow control option
• Switching position indication
  with accessories
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Housing material
  Die-cast aluminum
• Width
  42 mm
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Application note
  Operate by hand only
Underlap
yes
Product weight
220 g
Pneumatic connection 2
NPT1/8-27
Note on materials
Free of copper and PTFE RoHS-compliant
Valve function
4/3, closed
Pneumatic working port
NPT1/8-27
Type code
VHER
Flow direction
Non-reversible
Actuating torque
0.9 Nm
Pneumatic connection 1
NPT1/8-27
Seals material
NBR
Temperature of medium
-20 °C ... 80 °C
Pneumatic connection 3
NPT1/8-27
Lever material
Die-cast aluminum
