3488208 Festo Mechanical & Manual Valves

Name: 3488208
Brand: Festo

Part#:3488208

Manufacturer:Festo

Category:Mechanical & Manual Valves

Alt. Part#:VHER-P-H-B43C-G18

Product Lifecycle:Active

Get a quick Quote!

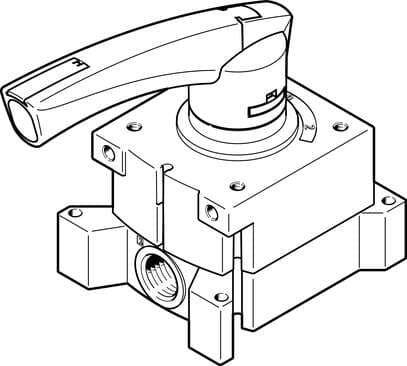

hand lever valve VHER-P-H-B43C-G18 Valve function: 4/3 closed, Type of actuation: manual, Width: 51 mm, Standard nominal flow rate: 600 l/min, Operating pressure: 0 - 10 bar

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 3488208 Festo price in the box on the right side or send a quick quote.

Product Details

Actuation type
Manual
Information on operating pressure
Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
Type code
VHER
Type of control
Direct
Sealing principle
Hard
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Standard nominal flow rate
600 l/min
Exhaust air function
With flow control option
Switching position indication
with accessories
Type of mounting
Optionally: With through-hole
Housing material
PA
Nominal width
6 mm
Actuator lock
can be closed with accessories
Underlap
yes
Temperature of medium
-20 °C ... 80 °C
Actuating torque
0.9 Nm
Seals material
NBR
Width
51 mm
Operating pressure
0 bar ... 10 bar
Flow direction
Non-reversible

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection 1

G1/8

Note on materials

Free of copper and PTFE RoHS-compliant

Valve function

4/3, closed

Pneumatic working port

G1/8

Design

Rotary gate valve

Application note

Operate by hand only

Symbol

00995944

Explosion prevention and protection

Zone 2 (ATEX) Zone 22 (ATEX)

Product weight

165 g

Pneumatic connection 2

G1/8

Ambient temperature

-20 °C ... 80 °C

Pneumatic connection 3

G1/8

Pneumatic connection 4

G1/8

Lever material

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
