3488206 Festo Mechanical & Manual Valves

3488206 on Powermatic Associates
Festo

Part#:3488206

Manufacturer:Festo

Category:Mechanical & Manual Valves

Alt. Part#:VHER-H-B43E-G18

Product Lifecycle:Active

Get a quick Quote!

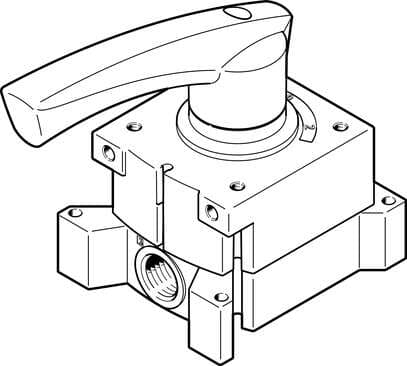

hand lever valve VHER-H-B43E-G18 Valve function: 4/3 exhausted, Type of actuation: manual, Width: 51 mm, Standard nominal flow rate: 600 l/min, Operating pressure: 0 - 10 bar

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 3488206 Festo price in the box on the right side or send a quick quote.

Product Details

  • Valve function
    4/3, exhausted
  • Operating pressure
    0 bar ... 10 bar
  • Application note
    Operate by hand only
  • Flow direction
    Non-reversible
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    G1/8
  • Seals material
    NBR
  • Design
    Rotary gate valve
  • Underlap
    yes
  • Product weight
    260 g
  • Pneumatic connection 4
    G1/8
  • Actuation type
    Manual
  • Pneumatic working port
    G1/8
  • Nominal width
    6 mm
  • Information on operating pressure
    Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
  • Type of control
    Direct
  • Switching position indication
    with accessories
  • Temperature of medium
    -20 °C ... 80 °C
  • Pneumatic connection 1
    G1/8
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Width
    51 mm
  • Exhaust air function
    With flow control option
  • Symbol
    00995941
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -20 °C ... 80 °C
  • Type of mounting
    Optionally: With through-hole
  • Housing material
    Die-cast aluminum
  • Standard nominal flow rate
    600 l/min
  • Type code
    VHER
  • Sealing principle
    Hard
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Actuating torque
    0.9 Nm
  • Pneumatic connection 3
    G1/8
  • Lever material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 3488206 Specs

3488206 3488206 DataSheet.pdf
