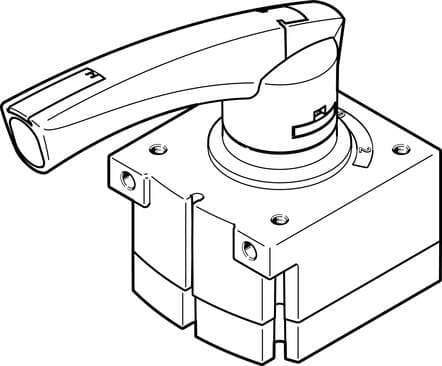

3192077 Festo Mechanical & Manual Valves

Product Details

• Width
  80 mm
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Actuator lock
  can be closed with accessories
• Symbol
  00995945
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pneumatic connection 3
  G1/2
• Housing material
  Die-cast aluminum
• Nominal width
  12 mm
• Exhaust air function
  With flow control option
• Sealing principle
  Hard
• Underlap
  yes
• Temperature of medium
  -20 °C ... 80 °C
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Valve function
  4/3, exhausted
• Pneumatic working port
  G1/2
• Type code
  VHER
• Type of control
  Direct
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -20 °C ... 80 °C
• Pneumatic connection 1
  G1/2
Type of mounting
Optionally: With through-hole
Lever material
PA
Standard nominal flow rate
3800 l/min
Design
Rotary gate valve
Flow direction
Non-reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Actuating torque
5 Nm
Pneumatic connection 2
G1/2
Seals material
NBR
Actuation type
Manual
Operating pressure
0 bar ... 10 bar
Application note
Operate by hand only
Switching position indication
with accessories
Product weight
740 g
Pneumatic connection 4
G1/2
