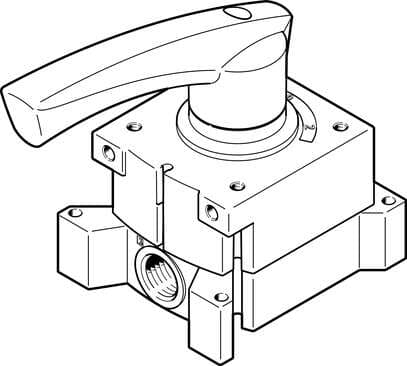

3192067 Festo Mechanical & Manual Valves

Product Details

• Valve function
  4/3, exhausted
• Pneumatic working port
  G1/2
• Nominal width
  12 mm
• Application note
  Operate by hand only
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 4
  G1/2
• Type code
  VHER
• Exhaust air function
  With flow control option
• Symbol
  00995941
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 2
  G1/2
• Seals material
  NBR
• Width
  95 mm
• Information on operating pressure
  Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
• Sealing principle
  Hard
• Underlap
  yes
• Actuating torque
  5 Nm
• Temperature of medium
  -20 °C ... 80 °C
• Product weight
  1010 g
Lever material
Die-cast aluminum
Actuation type
Manual
Operating pressure
0 bar ... 10 bar
Type of control
Direct
Switching position indication
with accessories
Pneumatic connection 1
G1/2
Note on materials
Free of copper and PTFE RoHS-compliant
Standard nominal flow rate
3200 l/min
Design
Rotary gate valve
Flow direction
Non-reversible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection 3
G1/2
Housing material
Die-cast aluminum
