3192066 Festo Mechanical & Manual Valves

3192066 on Powermatic Associates
Festo

Part#:3192066

Alt. Part#:VHER-H-B43C-B-G12

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

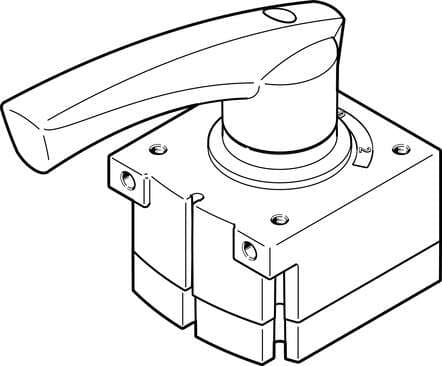

hand lever valve VHER-H-B43C-B-G12 Valve function: 4/3 closed, Type of actuation: manual, Width: 80 mm, Standard nominal flow rate: 3800 l/min, Operating pressure: 0 - 10 bar

Product Details

  • Width
    80 mm
  • Design
    Rotary gate valve
  • Symbol
    00995942
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With through-hole
  • Standard nominal flow rate
    3800 l/min
  • Exhaust air function
    With flow control option
  • Flow direction
    Non-reversible
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Actuating torque
    5 Nm
  • Pneumatic connection 3
    G1/2
  • Lever material
    Die-cast aluminum
  • Actuation type
    Manual
  • Information on operating pressure
    Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
  • Type of control
    Direct
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 1
    G1/2
  • Pneumatic connection 4
    G1/2
  • Type code
    VHER
  • Nominal width
    12 mm
  • Sealing principle
    Hard
  • Switching position indication
    with accessories
  • Ambient temperature
    -20 °C ... 80 °C
  • Product weight
    860 g
  • Seals material
    NBR
  • Valve function
    4/3, closed
  • Pneumatic working port
    G1/2
  • Operating pressure
    0 bar ... 10 bar
  • Application note
    Operate by hand only
  • Underlap
    yes
  • Temperature of medium
    -20 °C ... 80 °C
  • Pneumatic connection 2
    G1/2
  • Housing material
    Die-cast aluminum
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
