2783047 Festo Electric Actuators
Part#:2783047
Alt. Part#:EAGF-V2-KF-40-320
Manufacturer:Festo
Category:Electric Actuators
Product Lifecycle:Active
Product description

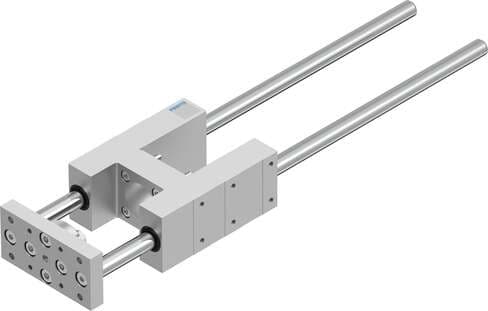

guide unit EAGF-V2-KF-40-320 For electric cylinder ESBF. Size: 40, Stroke: 320 mm, Reversing backlash: 0 µm, Assembly position: Any, Guide: Recirculating ball bearing guide
Product Details
- Reversing backlash 0 µm
- Guide Recirculating ball bearing guide
- Max. force Fy 1000 N
- Max. static moment Mz 65 Nm
- Moving mass 2307 g
- Center of gravity of moving mass with 10 mm stroke 4.2 mm
- Size 40
- Mounting position Any
- Max. force Fy static 1260 N
- Max. force Fz 1000 N
- Displacement force 15 N
- Housing material Wrought aluminum alloy Anodized
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Max. torque My 52 Nm
- Max. static moment My 65 Nm
- Center of gravity of moving mass with 0 mm stroke 38 mm
- Material of yoke plate Steel
- Type code EAGF
- Ambient temperature -20 °C ... 80 °C
- Max. force Fz static 1260 N
- Max. torque Mx 44 Nm
- Material of guide component Tempered steel
- Note on materials Free of copper and PTFE RoHS-compliant
- Stroke 320 mm
- Design Guide
- Max. static moment Mx 55 Nm
- Max. torque Mz 52 Nm
- Product weight 3541 g
- Type of mounting With internal thread
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
