Powermatic Associates Logo

2735411 Festo Actuator Accessories

2735411 on Powermatic Associates
Festo

Part#:2735411

Alt. Part#:EADP-ES-R3-32

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

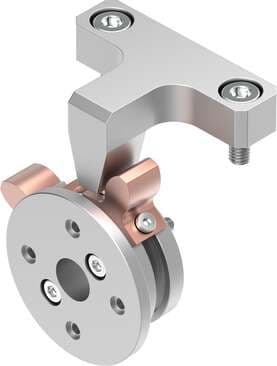

stop kit EADP-ES-R3-32 Size: 32, Rotation angle adjustment range: 0 - 325 deg, Assembly position: Any, Corrosion resistance classification CRC: 1 - Low corrosion stress, Storage temperature: -20 - 60 °C

Product Details

  • Storage temperature
    -20 °C ... 60 °C
  • Material of flange
    Wrought aluminum alloy Anodized
  • Adjustment range of swivel angle
    0 deg ... 325 deg
  • Mass moment of inertia JO
    1.3 kgcm²
  • Note on materials
    RoHS-compliant
  • Type code
    EADP
  • Stops material
    Nickel-plated beryllium bronze
  • Size
    32
  • Ambient temperature
    0 °C ... 50 °C
  • Type of mounting
    With internal thread
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    290 g
  • Retaining bracket material
    Wrought aluminum alloy Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2735411 Related Documents

2735411 DataSheet.pdf
