2247682 Festo Pneumatic Components

2247682 on Powermatic Associates
Festo

Part#:2247682

Alt. Part#:CACN-3A-1-10

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

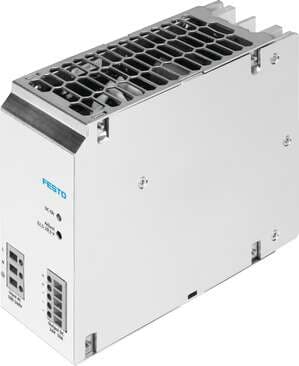

power supply unit CACN-3A-1-10 Width: 60 mm, Height: 130 mm, Length: 152,5 mm, Assembly position: Free convection, Primary supply: Single-phase

Product Details

  • Length
    152.5 mm
  • Input current
    1.5 - 3.0 A
  • Input voltage range AC
    100 V ... 240 V
  • Ambient temperature
    -25 °C ... 70 °C
  • Product weight
    1554 g
  • Width
    60 mm
  • Type code
    CACN
  • Nominal output current
    10 A
  • Relative air humidity
    95 %
  • Mounting position
    Free convection
  • Nominal output voltage DC
    24 V
  • Storage temperature
    -40 °C ... 85 °C
  • Type of mounting
    With H-rail
  • Mains frequency
    45 Hz ... 65 Hz
  • Degree of protection
    IP20
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Height
    130 mm
  • Primary supply
    1-phase
  • Power failure buffering
    24 ms
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU low voltage directive
  • Certification
    C-Tick c UL us - Listed (OL)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
