2052918 Festo Cable Assemblies

2052918 on Powermatic Associates
Festo

Part#:2052918

Alt. Part#:NEBC-S1H15-E-5.0-N-LE15

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

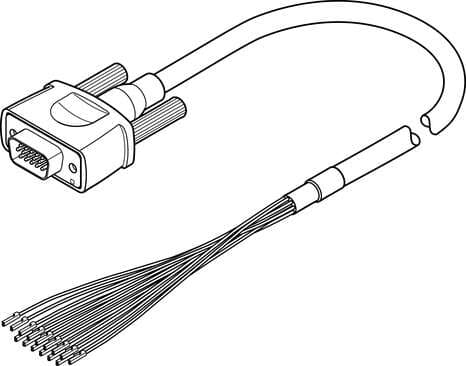

control cable NEBC-S1H15-E-5.0-N-LE15 Conforms to standard: DIN 47100, Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Angular, Electrical connection 1, connect

Product Details

  • Type code
    NEBC
  • Conforms to standard
    DIN 47100
  • Cable designation
    Without label holder
  • Electrical connection 1, function
    Field device end
  • Electrical connection 1, design
    Rectangular
  • Electrical connection 1, connection type
    Plug
  • Electrical connection 1, cable outlet
    Straight
  • Electrical connection 1, connection technology
    Sub-D
  • Electrical connection 1, occupied pins/wires
    15
  • Electrical connection 1, type of mounting
    2x screw, 4-40 UNC-2A
  • Electrical connection 1, number of pins/wires
    15
  • Electrical connection for input 1, connection pattern
    00995641
  • Electrical connection 2, connection type
    Cable
  • Electrical connection 2, connection technology
    Open end
  • Electrical connection 2, function
    Control side
  • DC operating voltage range
    0 V ... 30 V
  • Nominal operating voltage DC
    24 V
  • Electrical connection 2, occupied pins/wires
    15
  • Electrical connection 2, number of pins/wires
    15
  • Cable characteristic
    Suitable for energy chains
  • Bending radius, fixed cable installation
    ≥ 33 mm
  • Cable diameter
    6.6 mm
  • Cable length
    5 m
  • Nominal conductor cross section
    0.14 mm²
  • Cable design
    18 x 0.14 mm²
  • Wire ends
    Cable end sleeve
  • Degree of protection
    IP50
  • Ambient temperature
    -30 °C ... 80 °C
  • Ambient temperature with flexible cable installation
    -30 °C ... 80 °C
  • Note on degree of protection
    In mounted state
  • Contamination level
    3
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Note on materials
    RoHS-compliant
  • Material of cable sheath
    TPE-U(PUR)
  • Color cable sheath
    Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

2052918 Related Documents

2052918 DataSheet.pdf
