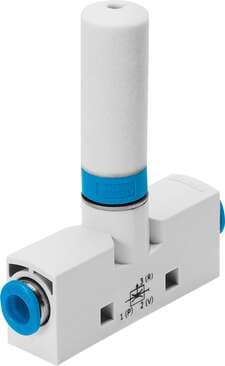

193540 Festo Vacuum Generators

Product Details

• Max. tightening torque
  0.5 Nm
• Product weight
  24 g
• Vacuum connection
  QS-6
• Female nozzle material
  POM
• Muffler construction type
  Open
• Symbol
  00991488
• Operating pressure for max. vacuum
  6 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Nominal width of Laval nozzle
  0.45 mm
• Mounting position
  Any
• Operating pressure
  1 bar ... 8 bar
• Air supply time at nominal operating pressure
  4.7 s
• Design
  T-shape
• Max. vacuum
  86 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level at nominal operating pressure
  53 dB(A)
• Type of mounting
  With through-hole With accessories
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Muffler material
  PE
• Width dimension
  14 mm
Ejector characteristics
High vacuum Inline
Operating pressure for max. suction rate
6.3 bar
Nominal operating pressure
6 bar
Ambient temperature
0 °C ... 60 °C
Pneumatic connection 3
Pneumatic muffler open
Seals material
NBR
Housing material
POM-reinforced
Type code
VN
Integrated function
Pneumatic muffler open
Max. suction rate with respect to atmosphere
6.1 l/min
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
0 °C ... 60 °C
Pneumatic connection 1
QS-6
Material of connecting thread
Brass, nickel-plated
Material of jet nozzle
Wrought aluminum alloy
Material of pneumatic fitting
Brass Nickel-plated
