193482 Festo Vacuum Generators
Part#:193482
Alt. Part#:VN-14-H-T4-PQ2-VQ3-RQ3
Manufacturer:Festo
Category:Vacuum Generators
Product Lifecycle:Active
Product description
vacuum generator VN-14-H-T4-PQ2-VQ3-RQ3 Standard, high vacuum, width 18 mm, T shape with push-in connector Nominal size, Laval nozzle: 1,4 mm, Grid dimension: 18 mm, Assembly position: Any, Ejector characteristic: (* High vacuum, * Standard), Design struc
Product Details
- Width dimension 18 mm
- Ejector characteristics High vacuum Standard
- Nominal width of Laval nozzle 1.4 mm
- Symbol 00991490
- Operating pressure for max. vacuum 5 bar
- Information on operating and pilot media Operation with oil lubrication not possible
- Temperature of medium 0 °C ... 60 °C
- Ambient temperature 0 °C ... 60 °C
- Material of jet nozzle Wrought aluminum alloy
- Type code VN
- Max. vacuum 88 %
- Air supply time at nominal operating pressure 0.5 s
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pneumatic connection 3 QS-8
- Female nozzle material POM
- Housing material POM-reinforced
- Mounting position Any
- Operating pressure 1 bar ... 8 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. tightening torque 0.5 Nm
- Pneumatic connection 1 QS-6
- Design T-shape
- Max. suction rate with respect to atmosphere 51.6 l/min
- Type of mounting With through-hole With accessories
- Vacuum connection QS-8
- Seals material NBR
- Material of pneumatic fitting Brass Nickel-plated
- Operating pressure for max. suction rate 5.1 bar
- Nominal operating pressure 6 bar
- Product weight 27 g
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
193482 Related Documents
Similar products from: Festo Vacuum Generators
Manufacturer warranty
193482 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 193482 with other Vacuum Generators products
Width dimension
Ejector characteristics
Nominal width of Laval no...
Symbol
Operating pressure for ma...
Information on operating ...
Temperature of medium
Ambient temperature
Material of jet nozzle
Type code
Selected product
193482
Festo
vacuum generator VN-14-H-T4-PQ2-VQ3-RQ3 Standard, high vacuum, width 18 mm, T shape with push-in con...
Width dimension18 mm
Ejector characteristicsHigh vacuum Standard
Nominal width of Laval nozzle1.4 mm
Symbol00991490
Operating pressure for max. vacuum5 bar
Information on operating and pilot mediaOperation with oil lubricati...
Temperature of medium0 °C ... 60 °C
Ambient temperature0 °C ... 60 °C
Material of jet nozzleWrought aluminum alloy
Type codeVN

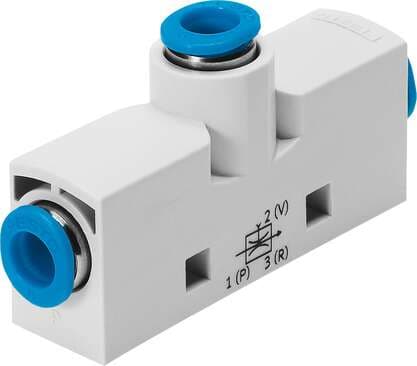

193479
Festo
vacuum generator VN-07-H-T3-PQ2-VQ2-RQ2 Standard, high vacuum, width 14 mm, T shape with push-in con...
Width dimension14 mm
Ejector characteristicsHigh vacuum Standard
Nominal width of Laval nozzle0.7 mm
Symbol00991490
Operating pressure for max. vacuum4.7 bar
Information on operating and pilot media-
Temperature of medium-
Ambient temperature-
Material of jet nozzle-
Type codeVN

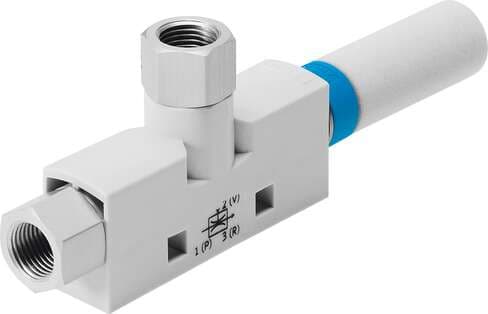

526105
