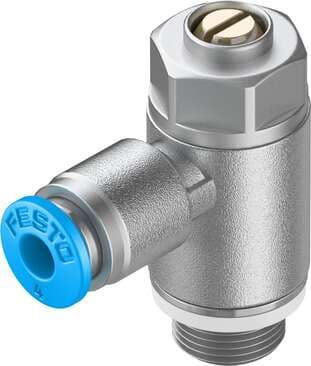

193143 Festo Stop Valves (non-return)
Part#:193143
Alt. Part#:GRLA-1/8-QS-4-D
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description
one-way flow control valve GRLA-1/8-QS-4-D Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QS-4, Pneumatic connection, port 2: G1/8, Adjusting element: Slotted head screw, Mounting type: Threaded
Product Details
- Pneumatic connection 1 QS-4
- Mounting position Any
- Standard flow rate in flow control direction 6 -> 0 bar 250 l/min
- Tolerance for nominal tightening torque ± 10%
- Note on materials RoHS-compliant
- Maritime classification See certificate
- Ambient temperature -10 °C ... 60 °C
- Operating pressure for entire temperature range 0.2 bar ... 10 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 22 g
- Material of adjusting screw Brass
- Valve function Exhaust air flow control non-return function
- Adjusting element Slotted screw
- Standard flow rate in non-return direction at 6 -> 0 bar 270 l/min ... 300 l/min
- Nominal tightening torque 3 Nm
- Seals material NBR
- Standard nominal flow rate in flow control direction 160 l/min
- Standard nominal flow rate in non-return direction 120 l/min ... 190 l/min
- Temperature of medium -10 °C ... 60 °C
- Material of screwed trunnion Wrought aluminum alloy
- Swivel joint material Die-cast zinc Chromated
- Type code GRLA
- Pneumatic connection 2 G1/8
- Type of mounting Screw-in
- Symbol 00991452
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Releasing ring material POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
