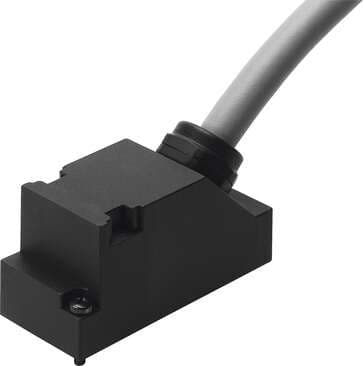

193018 Festo Cable Assemblies

Product Details

• Electrical connection 1, design
  Rectangular
• Electrical connection 1, connection technology
  Sub-D
• Electrical connection 1, type of mounting
  2x M3 screw
• Electrical connection 2, connection type
  Cable
• Current rating at 40°C
  3 A
• Cable characteristic
  Suitable for energy chains
• Cable diameter
  9.8 mm
• Wire ends
  Cut off bluntly
• Based on norm
  DIN 41652
• Product weight
  702 g
• Electrical connection 1, cable outlet
  Angled
• Electrical connection for input 1, connection pattern
  00995642
• Electrical connection 2, function
  Control side
• Electrical connection 2, occupied pins/wires
  25
• Bending radius, fixed cable installation
  ≥ 31 mm
• Cable design
  25 x 0.25 mm²
• Note on degree of protection
  In mounted state
• Note on materials
  RoHS-compliant
• Housing colour
  Black
• Electrical connection 2, connection technology
  Open end
Surge resistance
1 kV
Cable diameter tolerance
± 0.4 mm
Ambient temperature
-40 °C ... 70 °C
Contamination level
3
Housing material
PA
Type code
KMP4
Contact durability
50
Electrical connection 1, function
Field device end
Electrical connection 1, number of pins/wires
25
Electrical connection 2, number of pins/wires
25
Nominal operating voltage DC
24 V
Connector cable test conditions
Test conditions on request
Bending radius, flexible cable installation
≥ 51 mm
Degree of protection
IP65
CE marking (see declaration of conformity)
As per EU RoHS directive
Material of cable sheath
TPE-U(PUR)
Cable designation
With accessories
Electrical connection 1, connection type
Socket
Electrical connection 1, occupied pins/wires
25
DC operating voltage range
0 V ... 30 V
Cable length
5 m
Nominal conductor cross section
0.25 mm²
Ambient temperature with flexible cable installation
-40 °C ... 70 °C
Color cable sheath
Gray
Material of pin contacts
Copper alloy, gold-plated
Storage temperature
-25 °C ... 75 °C
Seals material
NBR
