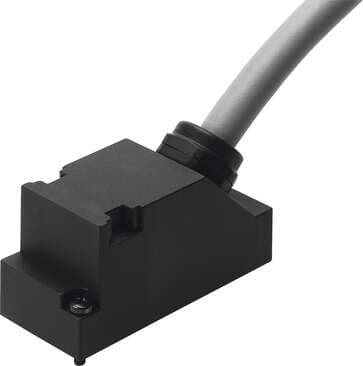

193017 Festo Cable Assemblies

Product Details

• Cable design
  25 x 0.25 mm²
• Based on norm
  DIN 41652
• Product weight
  1657 g
• Electrical connection 1, occupied pins/wires
  25
• Electrical connection 2, connection type
  Cable
• Electrical connection 2, number of pins/wires
  25
• Surge resistance
  1 kV
• Cable diameter
  10.4 mm
• Electrical connection 1, connection technology
  Sub-D
• Electrical connection for input 1, connection pattern
  00995642
• Current rating at 40°C
  3 A
• Cable length
  10 m
• Ambient temperature
  -40 °C ... 70 °C
• Note on materials
  RoHS-compliant
• Housing colour
  Black
• Type code
  KMP4
• Electrical connection 1, function
  Field device end
• Electrical connection 1, cable outlet
  Angled
• Electrical connection 1, number of pins/wires
  25
• Electrical connection 2, occupied pins/wires
  25
Connector cable test conditions
Test conditions on request
Bending radius, fixed cable installation
≥ 33 mm
Wire ends
Cut off bluntly
Note on degree of protection
In mounted state
Storage temperature
-25 °C ... 75 °C
Color cable sheath
Gray
Contact durability
50
Electrical connection 1, connection type
Socket
Electrical connection 1, type of mounting
2x M3 screw
Electrical connection 2, connection technology
Open end
Nominal operating voltage DC
24 V
Cable diameter tolerance
± 0.5 mm
Nominal conductor cross section
0.25 mm²
Degree of protection
IP65
Contamination level
3
Material of pin contacts
Copper alloy, gold-plated
Cable designation
With accessories
Electrical connection 1, design
Rectangular
Electrical connection 2, function
Control side
DC operating voltage range
0 V ... 30 V
Cable characteristic
Suitable for energy chains
Bending radius, flexible cable installation
≥ 55 mm
CE marking (see declaration of conformity)
As per EU RoHS directive
Housing material
PA
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Material of cable sheath
PVC
Seals material
NBR
