193012 Festo Cable Assemblies

193012 on Powermatic Associates

Festo

Part#:193012

Manufacturer:Festo

Alt. Part#:KMP4-9P-5-PVC

Product Lifecycle:Active

Get a quick Quote!

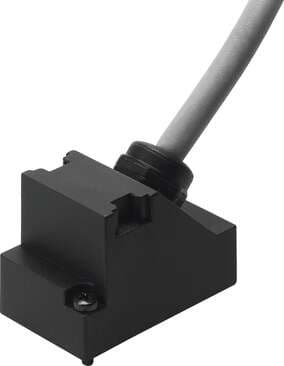

connecting cable KMP4-9P-5-PVC Based on the standard: DIN 41652, Cable identification: with accessories, Connection frequency: 50, Product weight: 413 g, Electrical connection 1, function: Field device side

About the manufacturer: Festo is one of the manufacturers that offers Cable Assemblies that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 193012 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
KMP4
Contact durability
50
Electrical connection 1, function
Field device end
Electrical connection 1, connection technology
Sub-D
Electrical connection 2, function
Control side
Electrical connection for input 1, connection pattern
00995638
Current rating at 40°C
3 A
Bending radius, flexible cable installation
≥ 39 mm
Wire ends
Cut off bluntly
Electrical connection 1, design
Rectangular
Cable designation
With accessories
Electrical connection 2, connection type
Cable
Electrical connection 2, number of pins/wires
10
Surge resistance
1 kV
Connector cable test conditions
Test conditions on request
Note on degree of protection
In mounted state
Material of cable sheath
PVC
Housing colour
Black
Based on norm
DIN 41652
Product weight
413 g

Electrical connection 1, connection type

Socket

Electrical connection 1, number of pins/wires

9

Electrical connection 2, connection technology

Open end

DC operating voltage range

0 V ... 30 V

Cable characteristic

Suitable for energy chains

Bending radius, fixed cable installation

≥ 24 mm

Nominal conductor cross section

0.25 mm²

Ambient temperature

-40 °C ... 70 °C

Housing material

PA

Electrical connection 2, occupied pins/wires

9

Cable length

5 m

Cable diameter tolerance

± 0.4 mm

Degree of protection

IP65

Contamination level

3

Note on materials

RoHS-compliant

Electrical connection 1, cable outlet

Angled

Electrical connection 1, occupied pins/wires

9

Electrical connection 1, type of mounting

2x M3 screw

Nominal operating voltage DC

24 V

Cable diameter

7.4 mm

Cable design

10 x 0.25 mm²

Ambient temperature with flexible cable installation

-5 °C ... 70 °C

Color cable sheath

Gray

Material of pin contacts

Copper alloy, gold-plated

Storage temperature

-25 °C ... 75 °C

CE marking (see declaration of conformity)

As per EU RoHS directive

Seals material

NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
