190902 Festo Pressure Control Valves

Name: 190902
Brand: Festo

Part#:190902

Manufacturer:Festo

Alt. Part#:LRL-1/2-NPT-QS-1/2-U

Product Lifecycle:Active

Get a quick Quote!

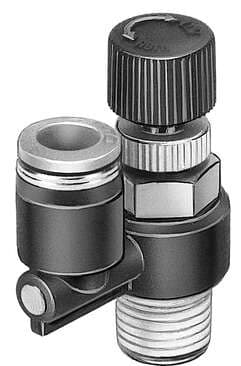

differential pressure regulator LRL-1/2-NPT-QS-1/2-U Without manometer, with male thread and QS plug connector. Controller function: Differential pressure, constant, Pneumatic connection, port 1: 1/2 NPT, Pneumatic connection, port 2: QS-1/2, Mounting t

About the manufacturer: Festo is one of the manufacturers that offers Pressure Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 190902 Festo price in the box on the right side or send a quick quote.

Product Details

Controller function
Differential pressure constant
Pneumatic connection 2
QS-1/2
Housing material
PBT-reinforced
Symbol
00991535
Note on materials
RoHS-compliant
Pneumatic connection 1
1/2 NPT
Ambient temperature
0 °C ... 60 °C
Mounting position
Any
Inlet pressure 1
0 bar ... 9 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Type code
LRL
Type of mounting
Screw-in
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Material of screwed trunnion
Brass
Product weight
108 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
