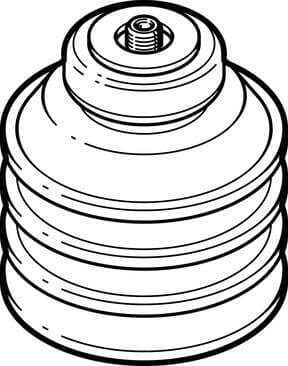

189407 Festo Vacuum Cups

Name: 189407
Brand: Festo

Part#:189407

Alt. Part#:ESS-50-CS

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

suction cup ESS-50-CS easily interchangeable, Suction cup height compensator: 17,5 mm, Min. workpiece radius: 180 mm, Nominal size: 3 mm, suction cup diameter: 50 mm, suction cup volume: 38,92 cm3

Product Details

Nominal width
3 mm
Mounting position
Any
Ambient temperature
-30 °C ... 180 °C
For use in the food industry
See supplementary material information
Color
Transparent
Product weight
32.1 g
Min. workpiece radius
180 mm
Suction cup volume
38.92 cm³
Type code
ESS
Classification of suction cup holder
Size 4
Operating pressure
0 bar ... 0.95 bar
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Type of mounting
Via vacuum connection
Vacuum connection
M6
Note on materials
Free of copper and PTFE RoHS-compliant
Suction cup diameter
50 mm
Symbol
00991485
Corrosion resistance class (CRC)
1 - Low corrosion stress
Lateral force at nominal operating pressure
45.5 N
Material of screwed trunnion
Wrought aluminum alloy, nickel-plated Steel, galvanized and chrome-plated

Suction cup height compensation

17.5 mm

Connection position

Top

Suction cup shape

Round bellows, 3.5 convolutions

Nominal operating pressure

-0.7 bar

Holding force at nominal operating pressure

63.4 N

Shore hardness

50 +/- 5

Suction cup material

VMQ (silicone)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
