189244 Festo Accessories Vacuum Cups

Name: 189244
Brand: Festo

Part#:189244

Alt. Part#:ESH-HDL-1-PK

Manufacturer:Festo

Category:Accessories Vacuum Cups

Product Lifecycle:Active

Product description

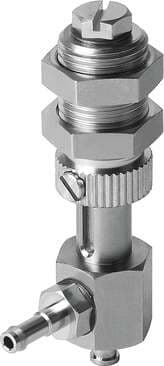

suction cup holder ESH-HDL-1-PK with increased height compensator, vacuum connection at side, compensator secured by two hexagonal nuts. Height compensator for suction-cup holder: 10 mm, Volume: 0,15 cm3, Assembly position: Vertical, Design structure: (*

Product Details

Mounting position
Vertical
Type code
ESH
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Seals material
NBR Steel
Product weight
28 g
Vacuum connection
PK-3
Suction cup holder height compensator
10 mm
Classification of suction cup holder
Size 1
Note on materials
RoHS-compliant
Volume
0.15 cm³
Design
Vacuum connection at side with height compensation
Ambient temperature
-10 °C ... 60 °C
Type of mounting
With lock nut
Corrosion resistance class (CRC)
1 - Low corrosion stress
Suction cup mounting
Diameter 3 mm
Retaining bracket material
Aluminum Tempered steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

189244 Related Documents

189244 DataSheet.pdf

Manufacturer warranty

189244 Festo
