187820 Festo Pneumatic Valves Accessories

187820 on Powermatic Associates
Festo

Part#:187820

Alt. Part#:CPE14-PRSGO-3

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

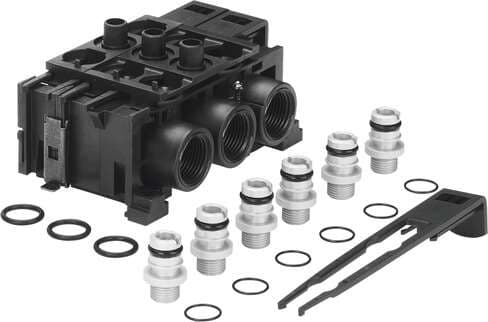

manifold block CPE14-PRSGO-3 For Compact Performance valves with open PRS ducts. Max. number of valve positions: 3, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium: Lubricated operation possib

Product Details

  • Type code
    CPE14
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Max. no. of valve positions
    3
  • Sub-base mounting type
    With through-hole With H-rail
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Housing material
    PA-reinforced
  • Pneumatic connection 1
    G3/8
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    130 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

187820 Related Documents

187820 DataSheet.pdf
