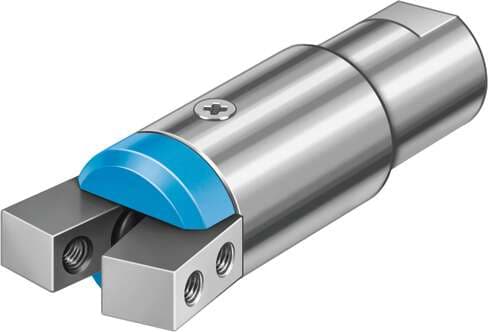

185701 Festo Grippers

Product Details

• Max. gripper jaw backlash Sz
  0.03 mm
• Type code
  HGWM
• Gripper function
  Angle
• Min. closing time at 6 bar
  1.8 ms
• Spring return torque
  0.013 Nm
• Maximum torque on gripper jaw, My static
  0.4 Nm
• Note on materials
  Free of copper and PTFE
• Design
  Inclined plane
• Operating pressure
  2 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Product weight
  45 g
• Max. gripper jaw angular play ax, ay
  0.5 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mode of operation
  Single-acting Open
• Min. opening time at 6 bar
  3.7 ms
• Total gripping torque at 6 bar, closing
  64 Ncm
• Maximum torque on gripper jaw, Mx static
  0.4 Nm
• Pneumatic connection
  M3
• Gripper jaw material
  High-alloy steel
• Max. opening angle
  18.5 deg
Number of gripper jaws
2
Symbol
00991897
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum force on gripper jaw Fz, static
20 N
Type of mounting
Clamped
Cover cap material
POM
Size
12
Position sensing
None
Max. operating frequency of pneumatic gripper
4 Hz
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.4 Nm
Housing material
High-alloy stainless steel
