185737 Festo Compressed Air Preparation Units

185737 on Powermatic Associates
Festo

Part#:185737

Alt. Part#:LFR-3/8-D-MIDI-KC

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

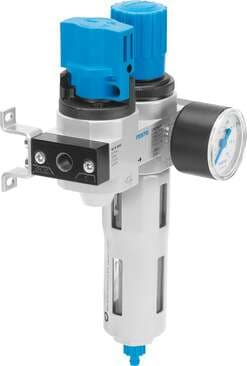

service unit LFR-3/8-D-MIDI-KC consisting of manual on/off valve and filter regulator, with mounting brackets. With manual condensate drain. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtrati

Product Details

  • Size
    Midi
  • Type code
    LFR
  • Condensate drain
    Manually rotating
  • Symbol
    00991523
  • Standard nominal flow rate
    2700 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Design
    Shut off valve Filter regulator with pressure gauge
  • Operating pressure
    1 bar ... 16 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    G3/8
  • Material of bowl
    PC
  • Maritime classification
    See certificate
  • Actuator lock
    Rotary knob with detent
  • Bowl guard
    Metal bowl guard
  • Max. pressure hysteresis
    0.2 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Housing material
    Die-cast zinc
  • Series
    D
  • Grade of filtration
    40 µm
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Temperature of medium
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Mounting position
    Vertical +/- 5°
  • Max. condensate volume
    43 ml
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Product weight
    1600 g
  • Pneumatic connection 2
    G3/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

185737 Related Documents

185737 DataSheet.pdf
