185741 Festo Compressed Air Preparation Units

185741 on Powermatic Associates
Festo

Part#:185741

Alt. Part#:LFR-3/4-D-MAXI-KC

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

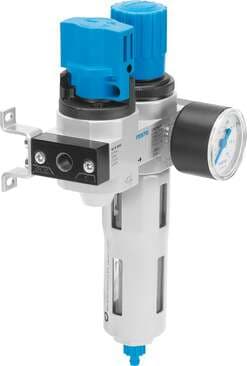

service unit LFR-3/4-D-MAXI-KC consisting of manual on/off valve and filter regulator, with mounting brackets. With manual condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtrati

Product Details

  • Grade of filtration
    40 µm
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Material of bowl
    PC
  • Series
    D
  • Design
    Shut off valve Filter regulator with pressure gauge
  • Symbol
    00991755
  • Standard nominal flow rate
    8400 l/min
  • Product weight
    2300 g
  • Housing material
    Die-cast zinc
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Max. pressure hysteresis
    0.2 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G3/4
  • Size
    Maxi
  • Actuator lock
    Rotary knob with detent
  • Max. condensate volume
    80 ml
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    G3/4
  • Type code
    LFR
  • Condensate drain
    Manually rotating
  • Operating pressure
    1 bar ... 16 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Type of mounting
    Optionally: With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

185741 Related Documents

185741 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock
162684 on Powermatic Associates

162684

Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
529609 on Powermatic Associates

529609

Festo

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom

15 in stock
530506 on Powermatic Associates

530506

Festo

fine filter MS6-LFM-1/2-BRV 1 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: fully aut

26 in stock

Manufacturer warranty

185741 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 185741 with other Compressed Air Preparation Units products

Grade of filtration

Pressure regulation range

Temperature of medium

Material of bowl

Series

Design

Symbol

Standard nominal flow rat...

Product weight

Housing material

Selected product

185741
Backordered
185741
Festo

service unit LFR-3/4-D-MAXI-KC consisting of manual on/off valve and filter regulator, with mounting...

Grade of filtration40 µm

Pressure regulation range0.5 bar ... 12 bar

Temperature of medium-10 °C ... 60 °C

Material of bowlPC

SeriesD

DesignShut off valve Filter regula...

Symbol00991755

Standard nominal flow rate8400 l/min

Product weight2300 g

Housing materialDie-cast zinc

159637
2 in stock
159637
Festo

filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...

Grade of filtration40 µm

Pressure regulation range-

Temperature of medium-

Material of bowl-

SeriesD

DesignFilter regulator with pressu...

Symbol00991587

Standard nominal flow rate-

Product weight-

Housing material-

162684
2 in stock
162684
Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...

Grade of filtration40 µm

Pressure regulation range-

Temperature of medium-

Material of bowl-

SeriesD

DesignFilter regulator with pressu...

Symbol00991583

Standard nominal flow rate-

Product weight-

Housing material-

About the manufacturer

Festo

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

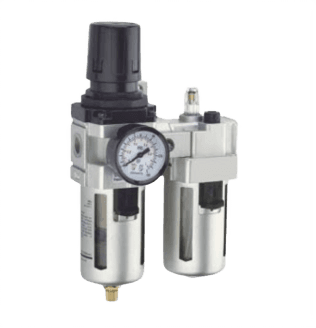

Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
