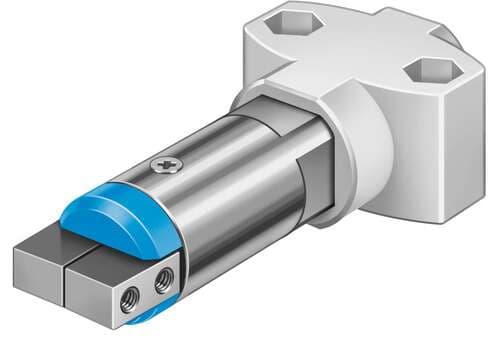

185702 Festo Grippers

Product Details

• Size
  12
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Max. gripper jaw backlash Sz
  0.03 mm
• Number of gripper jaws
  2
• Symbol
  00991898
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Mode of operation
  Single-acting Closed
• Max. operating frequency of pneumatic gripper
  4 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  0.4 Nm
• Pneumatic connection
  M3
• Housing material
  High-alloy stainless steel
• Max. opening angle
  14 deg
• Gripper function
  Angle
• Min. opening time at 6 bar
  1.7 ms
• Stroke compensation spring force
  10 N ... 23 N
• Maximum torque on gripper jaw, Mz static
  0.4 Nm
• Cover cap material
  POM
• Max. gripper jaw angular play ax, ay
  0.5 deg
• Type code
  HGWM
Position sensing
None
Operating pressure
2 bar ... 8 bar
Total gripping torque at 6 bar, opening
76 Ncm
Maximum torque on gripper jaw, My static
0.4 Nm
Note on materials
Free of copper and PTFE
Gripper jaw material
High-alloy steel
Design
Inclined plane
Min. closing time at 6 bar
2.8 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Product weight
75 g
Maximum force on gripper jaw Fz, static
20 N
Spring return torque
0.015 Nm
Type of mounting
With internal thread

Related documents 185702 Specs
