18494 Festo Pneumatic Components
Part#:18494
Alt. Part#:SIE-GD
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

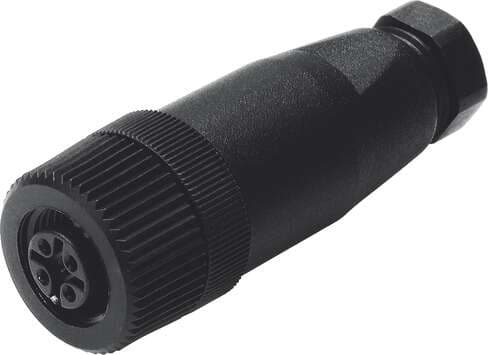

sensor socket SIE-GD Conforms to standard: (* EN 61076-2-101, * EN 61984), Mounting type: With sleeve nut, Product weight: 13 g, Electrical connection: (* 4-pin, * Straight socket / screw terminal, * M12x1), Plug coding: A
Product Details
- Conforms to standard EN 61076-2-101 EN 61984
- DC operating voltage range 0 V ... 250 V
- Approved cable diameter 4 mm ... 6 mm
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
- Type code SIE
- Electrical connection 4-pin M12x1
- Degree of protection IP67
- CE marking (see declaration of conformity) As per EU low voltage directive
- Housing colour Black
- Plug coding A
- Product weight 13 g
- Surge resistance 2.5 kV
- Current rating at 40°C 4 A
- Housing material PA
- Material of pin contacts Brass White bronze, coated
- Type of mounting With union nut
- Operating voltage range AC 0 V ... 250 V
- Connection cross section 0.25 mm² ... 0.75 mm²
- Note on materials RoHS-compliant
- Material of union nut PA
- Ambient temperature -25 °C ... 85 °C
- Contamination level 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
