18496 Festo Electrical Connectors

18496 on Powermatic Associates
Festo

Part#:18496

Alt. Part#:FBSD-GD-13,5

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

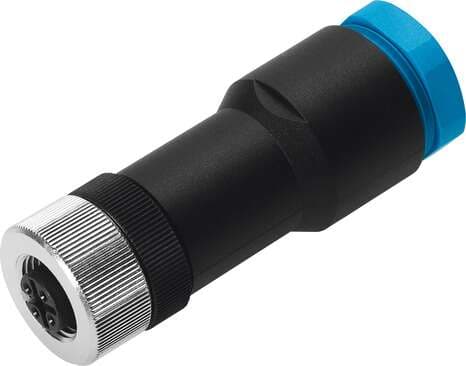

plug socket FBSD-GD-13,5 For fieldbus connection to valve and valve/sensor terminals. Based on the standard: (* EN 61076-2-101, * EN 61984), Mounting type: With sleeve nut, Assembly position: Any, Product weight: 40 g, Electrical connection: (* 4-pin, * S

Product Details

  • DC operating voltage range
    ≤ 250 V
  • Surge resistance
    2.5 kV
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Type code
    FBSD
  • Product weight
    40 g
  • Approved cable diameter
    10 mm ... 12 mm
  • Note on materials
    RoHS-compliant
  • Material of union nut
    Die-cast zinc Nickel-plated
  • Electrical connection
    4-pin M12x1
  • Connection cross section
    0.75 mm²
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Cable fitting
    Pg13.5
  • Type of mounting
    With union nut
  • Operating voltage range AC
    ≤ 250 V
  • Ambient temperature
    -40 °C ... 85 °C
  • Housing colour
    Black
  • Mounting position
    Any
  • Based on norm
    EN 61076-2-101 EN 61984
  • Current rating at 40°C
    4 A
  • Degree of protection
    IP67
  • Contamination level
    3
  • Material of pin contacts
    Bronze White bronze, coated
  • Housing material
    PA-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
