177616 Festo Pneumatic Components

177616 on Powermatic Associates
Festo

Part#:177616

Alt. Part#:PZVT-120-SEC

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

timer PZVT-120-SEC Design structure: mechanical sequence counter with pneumatic drive, Switch-off pressure: <: 0,1 bar, Operating pressure: 2 - 6 bar, Switch-on pressure: >: 1,6 bar, Standard nominal flow rate: 50 l/min

Product Details

  • Type code
    PZVT
  • Switch-on pressure
    ≥ 1.6 bar
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    ABS
  • Pause period for reset
    ≥ 200 ms
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Type of mounting
    Front panel mounting
  • Design
    Mechanical sequence counter with pneumatic actuator
  • Setting accuracy
    ± 3 s
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    RoHS-compliant
  • Operating pressure
    2 bar ... 6 bar
  • Standard nominal flow rate
    50 l/min
  • Repetition accuracy of time setting
    ± 1.2 s
  • Degree of protection
    IP54 as per IEC 60529
  • Product weight
    45 g
  • Switch-off pressure
    ≤ 0.1 bar
  • Adjustable delay time
    8 s ... 120 s
  • Pneumatic connection
    Internal thread M5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

177616 Related Documents

177616 DataSheet.pdf

Similar products from: Festo Pneumatic Components

159596 on Powermatic Associates

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

1 in stock
1589339 on Powermatic Associates

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock
195495 on Powermatic Associates

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock
550481 on Powermatic Associates

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock
2950 on Powermatic Associates

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, monostable, Type of actuation: mechanical, Standard nominal flow rate: 175 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

852 in stock
184318 on Powermatic Associates

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock

Manufacturer warranty

177616 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 177616 with other Pneumatic Components products

Type code

Switch-on pressure

Explosion prevention and ...

Ambient temperature

Housing material

Pause period for reset

Information on operating ...

Type of mounting

Design

Setting accuracy

Selected product

177616
Backordered
177616
Festo

timer PZVT-120-SEC Design structure: mechanical sequence counter with pneumatic drive, Switch-off pr...

Type codePZVT

Switch-on pressure≥ 1.6 bar

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Ambient temperature-10 °C ... 60 °C

Housing materialABS

Pause period for reset≥ 200 ms

Information on operating and pilot mediaOperation with oil lubricati...

Type of mountingFront panel mounting

DesignMechanical sequence counter ...

Setting accuracy± 3 s

8080960
4 in stock
8080960
Festo

selector valve VHEF-E-B52-G18 Valve function: 5/2 bistable, Type of actuation: manual, Width: 20 mm,...

Type codeVHEF

Switch-on pressure-

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Ambient temperature-

Housing material-

Pause period for reset-

Information on operating and pilot media-

Type of mounting-

DesignPiston gate valve

Setting accuracy-

11914
1 in stock
11914
Festo

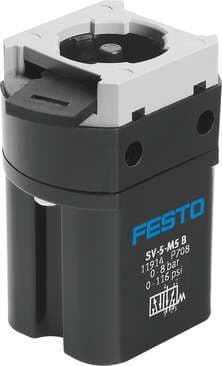

front panel valve SV-5-M5-B Valve function: 5/2 monostable, Type of actuation: manual, Standard nomi...
