175754 Festo Pneumatic Actuators

Name: 175754
Brand: Festo

Part#:175754

Alt. Part#:ADVU-125-30-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

compact cylinder ADVU-125-30-P-A For proximity sensing, piston-rod end with female thread. Stroke: 30 mm, Piston diameter: 125 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting

Product Details

Stroke
30 mm
Mounting position
Any
Cushioning
Elastic cushioning rings/pads at both ends
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Moving mass at 0 mm stroke
1317 g
Pneumatic connection
G1/4
Material of cylinder barrel
Wrought aluminum alloy
Design
Piston Piston rod
Operating pressure
0.5 bar ... 10 bar
Additional weight per 10 mm stroke
168 g
Flange screws material
Steel, galvanized
Type code
ADVU
Mode of operation
Double-acting
Symbol
00991217
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Theoretical force at 6 bar, retracting
6881 N
Additional moving mass per 10 mm stroke
63 g
Material of dynamic seals
NBR TPE-U(PU)
Piston diameter
125 mm
Piston rod end
Internal thread

Variants

Piston rod at one end

Ambient temperature

-20 °C ... 80 °C

Theoretical force at 6 bar, advancing

7363 N

Type of mounting

Optionally: With accessories

Cover material

Wrought aluminum alloy

Position sensing

For proximity sensor

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Impact energy in the end positions

3.3 J

Basic weight with 0 mm stroke

3426 g

Piston rod material

High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

175754 Related Documents

175754 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators

544034

Festo

mini slide DGSL-25-50-PA With position sensing, highly accurate, durable ball-cage guide, flexible damping on both sides without metallic end position (P). Stroke: 50 mm, Adjustable endposition range/front length: 55 mm, Adjustable endposition range/rear

1 in stock

536287

Festo

compact cylinder ADN-32-80-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 80 mm, Piston diameter: 32 mm, Piston rod thread: M8, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 250 mm, Piston diameter: 125 mm, Piston rod thread: M27x2, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An

6 in stock

164043

Festo

flat cylinder DZF-32-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 80 mm, Piston diameter: (* 32 mm, * Equivalent diameter), Max

1 in stock

536248

Festo

compact cylinder ADN-20-40-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 40 mm, Piston diameter: 20 mm, Piston rod thread: M6, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

170860

Festo

guided drive DFM-32-100-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate: 50 mm, Stroke: 100 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both en

2 in stock

Manufacturer warranty

175754 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 175754 with other Pneumatic Actuators products

Stroke

Mounting position

Cushioning

Operating medium

Moving mass at 0 mm strok...

Pneumatic connection

Material of cylinder barr...

Design

Operating pressure

Additional weight per 10 ...

Selected product

Backordered

175754

Festo

compact cylinder ADVU-125-30-P-A For proximity sensing, piston-rod end with female thread. Stroke: 3...

Stroke30 mm

Mounting positionAny

CushioningElastic cushioning rings/pad...

Operating mediumCompressed air as per ISO 85...

Moving mass at 0 mm stroke1317 g

Pneumatic connectionG1/4

Material of cylinder barrelWrought aluminum alloy

DesignPiston Piston rod

Operating pressure0.5 bar ... 10 bar

Additional weight per 10 mm stroke168 g

6 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning ...

Stroke250 mm

Mounting positionAny

CushioningSelf-adjusting pneumatic end...

Operating medium-

Moving mass at 0 mm stroke-

Pneumatic connection-

Material of cylinder barrel-

DesignPiston Profile barrel

Operating pressure0.02 MPa ... 1 MPa

Additional weight per 10 mm stroke-

1 in stock

536287

Festo

compact cylinder ADN-32-80-I-P-A Per ISO 21287, with position sensing and internal piston rod thread...

Stroke80 mm

Mounting positionAny

CushioningElastic cushioning rings/pad...

Operating medium-

Moving mass at 0 mm stroke-

Pneumatic connection-

Material of cylinder barrel-

Design-

Operating pressure0.6 bar ... 10 bar

Additional weight per 10 mm stroke-

1 in stock

536248

Festo

compact cylinder ADN-20-40-I-P-A Per ISO 21287, with position sensing and internal piston rod thread...

Stroke40 mm

Mounting positionAny

CushioningElastic cushioning rings/pad...

Operating medium-

Moving mass at 0 mm stroke-

Pneumatic connection-

Material of cylinder barrel-

Design-

Operating pressure0.6 bar ... 10 bar

Additional weight per 10 mm stroke-

6 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning ...

Stroke250 mm

Mounting positionAny

CushioningSelf-adjusting pneumatic end...

Operating medium-

Moving mass at 0 mm stroke-

Pneumatic connection-

Material of cylinder barrel-

DesignPiston Profile barrel

Operating pressure0.02 MPa ... 1 MPa

Additional weight per 10 mm stroke-

6 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning ...

Stroke250 mm

Mounting positionAny

CushioningSelf-adjusting pneumatic end...

Operating medium-

Moving mass at 0 mm stroke-

Pneumatic connection-

Material of cylinder barrel-

DesignPiston Profile barrel

Operating pressure0.02 MPa ... 1 MPa

Additional weight per 10 mm stroke-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI3CRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple (3) motor stack, enhanced by the Plus 2 version for expanded features. This motor utilizes a 16-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted using a 42x42mm flange. The ambient air temperature suitable for its operation is between 0 and +85°C. This stepper motor is rated with a degree of protection of IP20, has a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution characterized by a 1.8° step angle.

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

61570882

SAB

SABIX A 157 FRNC - 16 AWG/1c, flame retardant halogen-free 1000V white hook-up wire, UL, CE, RoHS

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

Relevant products

175716

Verified stock: 18

connecting cable SIM-M12-5GD-5-PU For sensors and proximity switches. Conforms to standard: (* EN 61076-2-101, * EN 61984), Electrical connection: (* 5-pin/5-wire, * Straight socket/open end, * M12x1 / -), Plug coding: A, Operating voltage range DC: 0 - 6

Festo

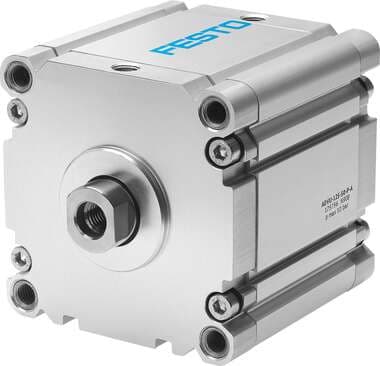

175753

Verified stock: 0

compact cylinder ADVU-125-25-P-A For proximity sensing, piston-rod end with female thread. Stroke: 25 mm, Piston diameter: 125 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting

Festo

175764

Verified stock: 0

compact cylinder ADVU-125-20-A-P-A For proximity sensing, piston-rod end with male thread. Stroke: 20 mm, Piston diameter: 125 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting

Festo

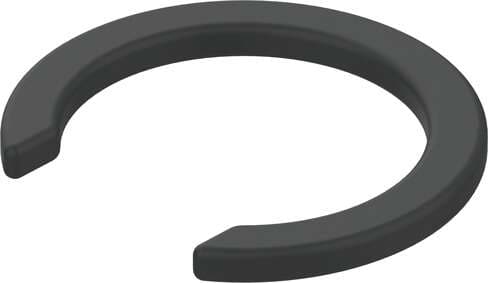

175729

Verified stock: 0

retaining ring CQSR-18 for CQ connectors Container size: 10, Assembly position: Any, Maritime classification: see certificate, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Food-safe: See Supplementary material information

Festo

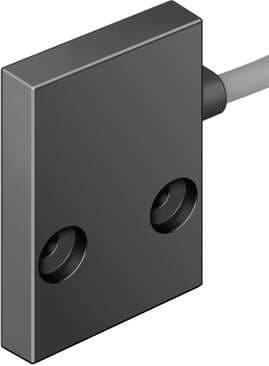

175712
