174847 Festo Cable Assemblies

Name: 174847
Brand: Festo

Part#:174847

Alt. Part#:KMEB-2-230-5

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

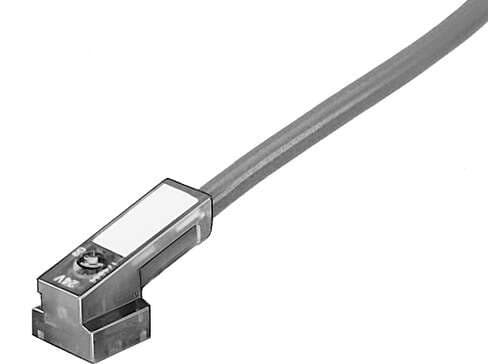

plug socket with cable KMEB-2-230-5 Pre-assembled, for MEBH, MOEBH valves and N2 solenoids. Mounting type: On solenoid valve with M2.5 central screw, Assembly position: Any, Product weight: 400 g, Electrical connection: (* 4-pin, * Plug socket angled, * P

Product Details

Type code
KMEB
Nominal operating voltage AC
230 V
Note on materials
RoHS-compliant
Material of cable sheath
TPE-U(PUR)
Cable design
3 x 0.75 mm²
CE marking (see declaration of conformity)
As per EU RoHS directive
Electrical connection
4-pin as per DIN EN 175301-803
Protective earth connection
Available
Mounting position
Any
Product weight
400 g
Cable diameter
6.2 mm
Ambient temperature
-20 °C ... 80 °C
Material of pin contacts
Bronze
Type of mounting
On air solenoid valve with M2.5 central screw
Cable length
5 m
Degree of protection
IP65 as per IEC 60529
Housing material
PA POM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
