1686665 Festo Ball Valves

1686665 on Powermatic Associates
Festo

Part#:1686665

Alt. Part#:VZBA-3/4"-WW-63-T-22-F0304-V4V4T

Manufacturer:Festo

Category:Ball Valves

Product Lifecycle:Active

Product description

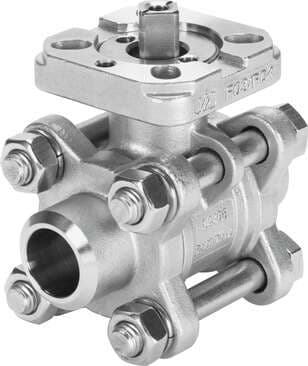

ball valve VZBA-3/4"-WW-63-T-22-F0304-V4V4T 2/2-way, flange hole pattern F0304, welded end. Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

Product Details

  • Actuation type
    Mechanical
  • Flange hole pattern
    F03 F04
  • Valve function
    2/2
  • Based on norm
    DIN 3202-S13 ISO 5211
  • Material number of housing
    1.4408
  • Material number for shaft
    1.4401
  • Type code
    VZBA
  • Type of mounting
    Line installation
  • Nominal pressure of fitting PN
    63
  • Temperature of medium
    -10 °C ... 200 °C
  • Seals material
    PTFE PTFE-reinforced
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Switching position indication
    Slot direction = flow direction
  • Manual override
    None
  • Symbol
    00991458
  • Flow rate Kv
    45.6 m³/h
  • Shaft material
    High-alloy stainless steel
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Design
    2-way ball valve
  • Mounting position
    Any
  • Inside diameter
    20 mm
  • Actuating torque
    14 Nm
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Ball material
    High-alloy stainless steel
  • Product weight
    850 g
  • Sealing principle
    Soft
  • Fitting connection
    Weld-on ends/weld-on ends
  • Nominal width DN
    20
  • Flow direction
    Reversible
  • Medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Other flow media on request
  • Housing material
    High-alloy stainless steel
  • Material number for ball
    1.4408

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
