1686610 Festo Cable Assemblies

Name: 1686610
Brand: Festo

Part#:1686610

Alt. Part#:NHSB-A1-15-BLG3-LE3-PU8-2XBB

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

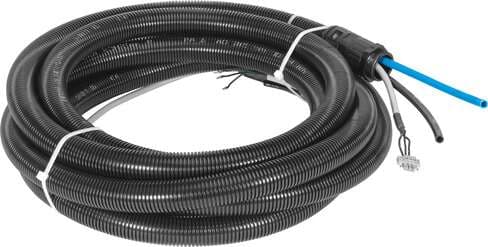

connecting cable NHSB-A1-15-BLG3-LE3-PU8-2XBB pneumatically/electrically suitable for linear actuator DFPI-…-E-…P, length 15 m. Protective tube length: 15 m, Assembly position: Any, Outdoor use: C1 - weather protected locations of use, Operating voltage r

Product Details

Use in exterior area
Weather-protected locations class C1 based on IEC 60654-1
Information on operating and pilot media
Operation with oil lubrication possible
Ambient temperature
-20 °C ... 60 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight
3750 g
Seals material
TPE
Mounting position
Any
Degree of protection
IP65 NEMA 4
Electrical connection 1
Straight plug, 3-pin
Protective tube length
15 m
Relative air humidity
5 - 100 % Condensing
Electrical connection 2
Open end, 3-wire
Cable design
3 x 0.75 mm²
Material of cable sheath
PVC
Type code
NHSB
DC operating voltage range
0 V ... 30 V
Ambient temperature with flexible cable installation
-5 °C ... 60 °C
Pneumatic connection
For pneumatic tubing outside diameter 8 mm
Protective conduit material
PA
Min. cable bending radius
100 mm

Protective conduit fitting material

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
